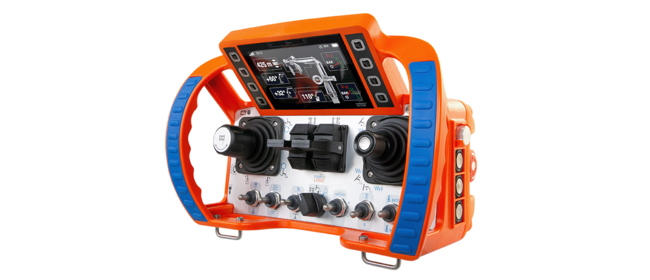

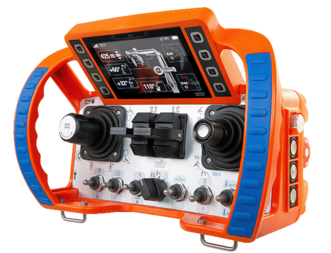

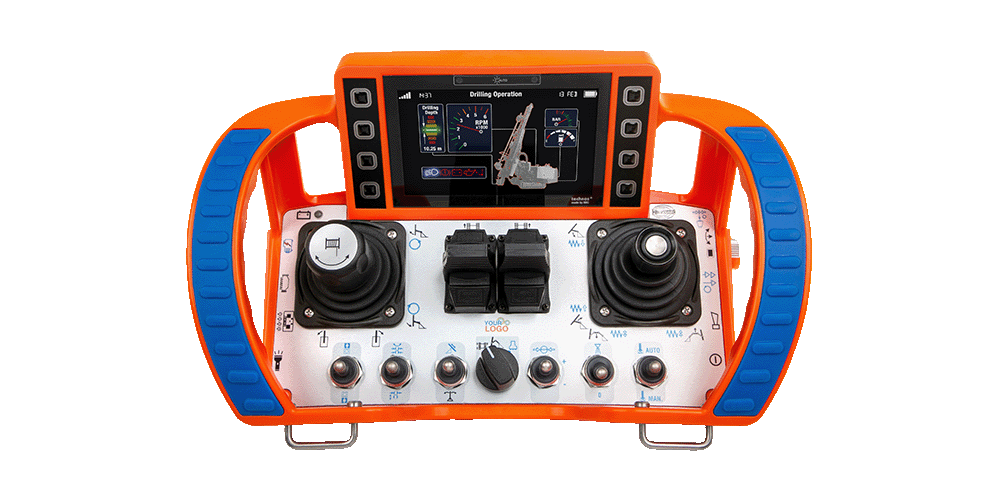

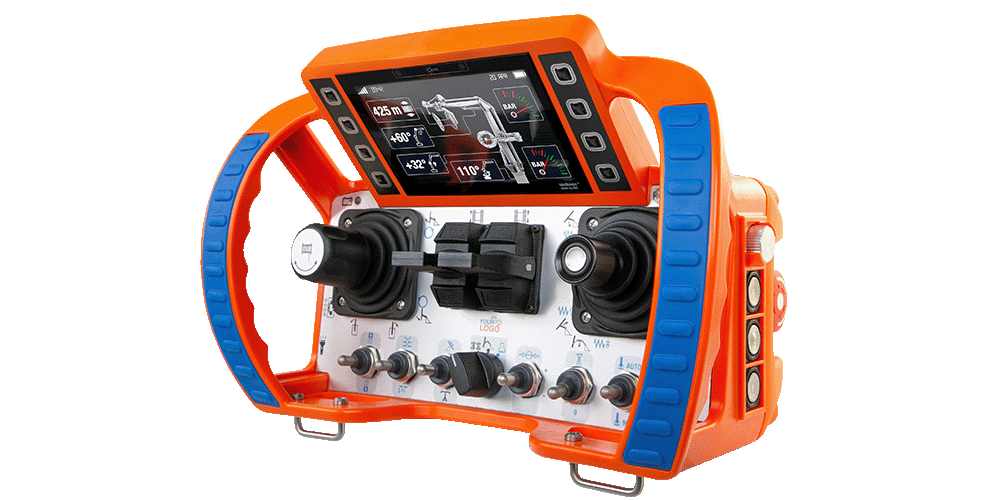

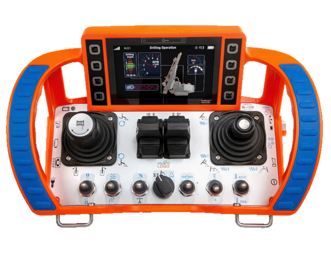

technos C

The versatile radio transmitter with a large 5" color display and numerous valuable features and functions.

technos C The versatile radio transmitter with a large 5
technos C The versatile radio transmitter with a large 5
technos C The versatile radio transmitter with a large 5
technos C The versatile radio transmitter with a large 5
technos C The versatile radio transmitter with a large 5

Product description

The technos C is the perfect combination of powerful display technology with the latest HBC features in an ergonomic, handy design. This versatile all-rounder can
be completely configured according to specific customer requirements and offers extended possibilities in the field of functional safety. High-performing exchangeable
Li-ion batteries provide optimum power for a wide range of applications.

  • Operation
  • Safety
  • Frequency management
  • Frequency ranges
  • Dimensions & specifications
  • Service concept
  • HBC features
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

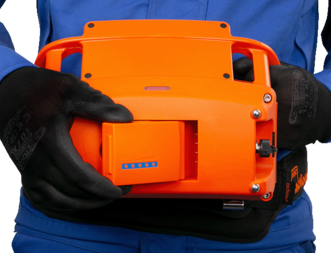

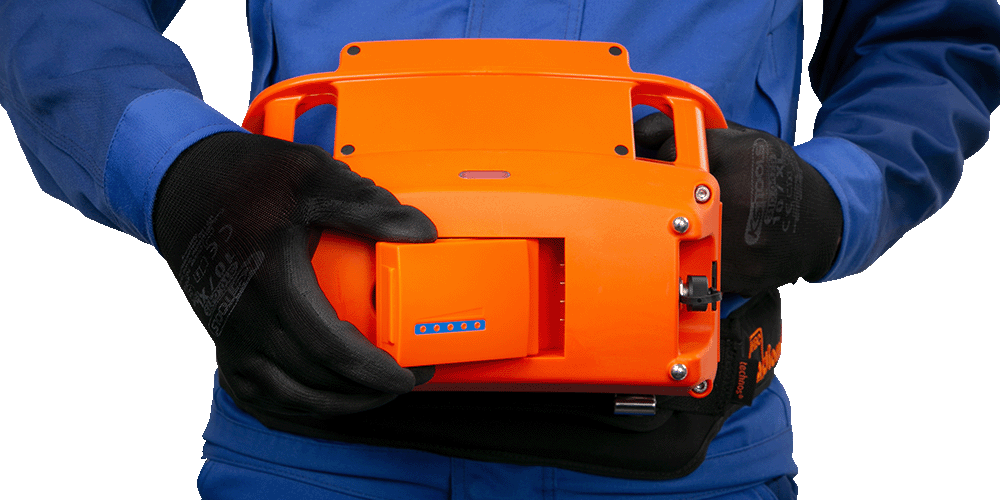

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Auto Movement Off | HBC-radiomatic GmbH

Auto Movement Off

Automatic deactivation of movement functions after 5 min without command input.

Functional Safety | HBC-radiomatic GmbH

Functional Safety

As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

radiomatic® AFM | HBC-radiomatic GmbH

radiomatic® AFM

= fully automatic

 | HBC-radiomatic GmbH

country-independent use:
2402 - 2480 MHz

 | HBC-radiomatic GmbH

country-specific use:
1790 - 1930 MHz

 | HBC-radiomatic GmbH

country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic (PA6 GF30)

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-20 °C … +70 °C (-4 °F … 158° F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 2.7 kg (6.0 lb.)

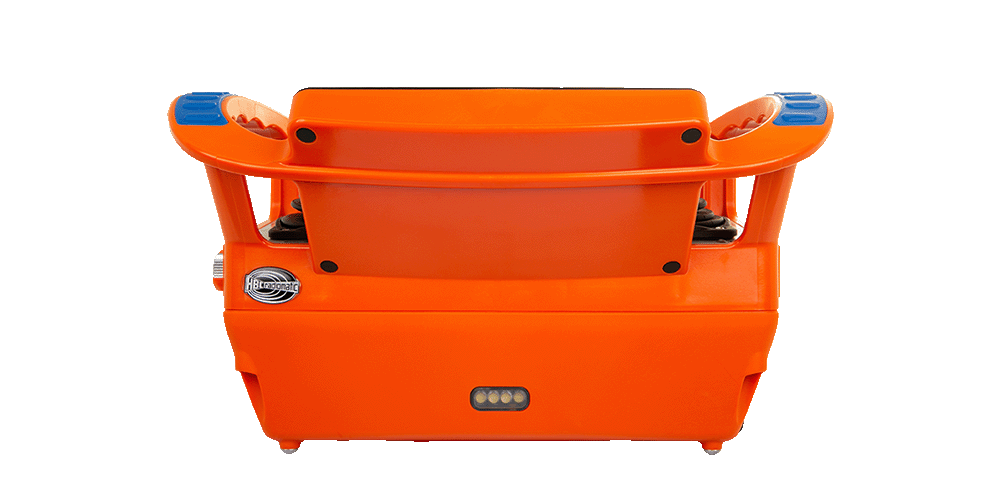

Dimensions: | HBC-radiomatic GmbH

Dimensions:

310 x 210 x 175 mm
(12.2 x 7.9 x 6.9 ")

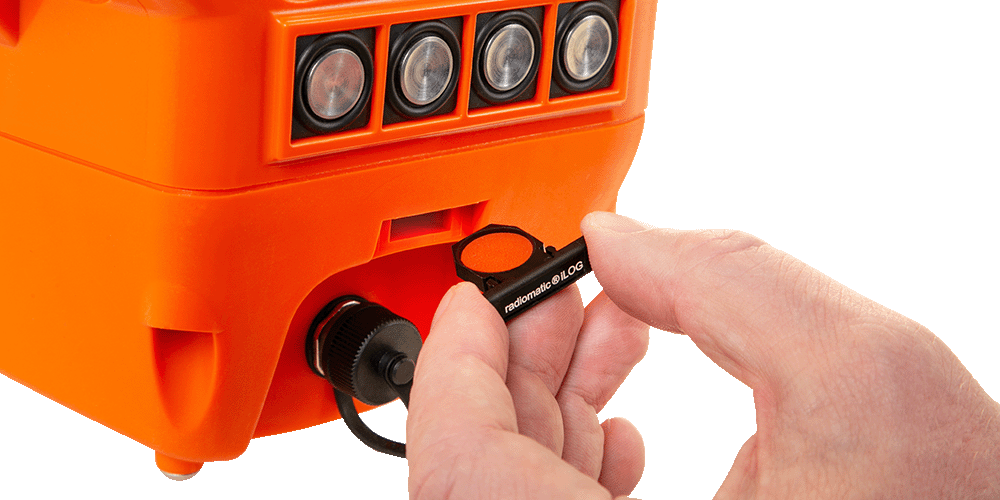

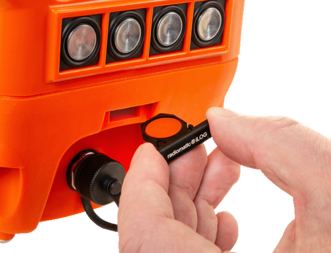

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

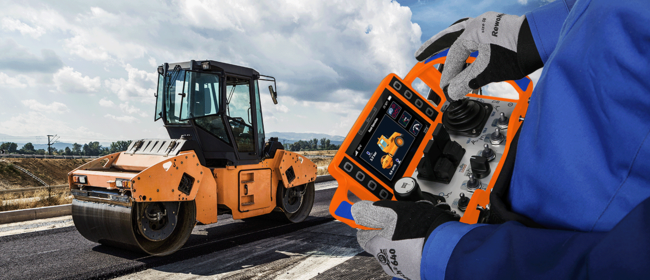

Typical applications
