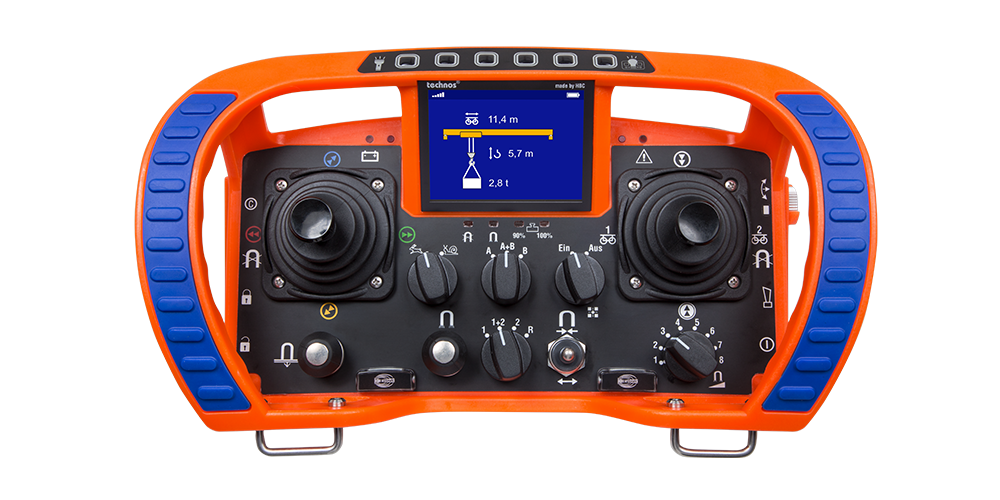

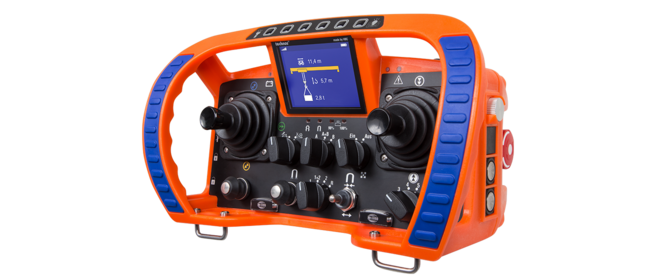

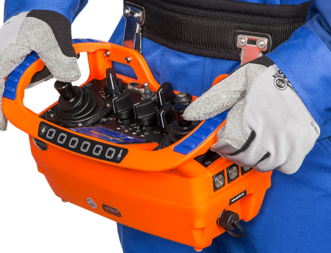

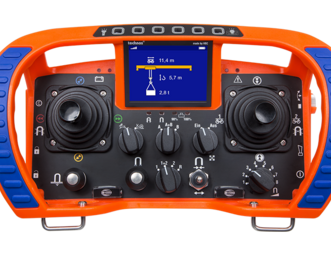

Versatile radio control with large function range and configurable 3.5″ color TFT. Ergonomic technos design for perfect operating comfort. Available with joysticks, linear levers and many other operating elements.
- Frequency management
- Frequency ranges
- Dimensions & specifications
- Service concept
- HBC features
- Extended control concepts
- Performance & availability
- Enhanced safety functions
- Feedback to the operator
Operating elements & control functions
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Auto Movement Off
Automatic deactivation of movement functions after 5 min without command input.
As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)
Manual frequency switch
= partially automatic
= fully automatic
Adaptive Frequency Hopping
= fully automatic
2402 - 2480 MHz
1790 - 1930 MHz
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz
Housing material / protection class:
Protection class IP 65
Operating temperature range:
-20 °C … +70 °C
(-4 °F … +158 °F)
approx. 2.3 kg (5.07 lb.)

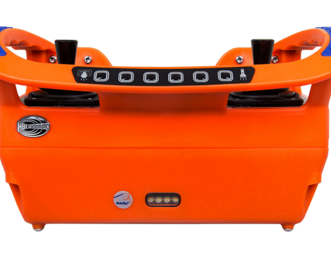

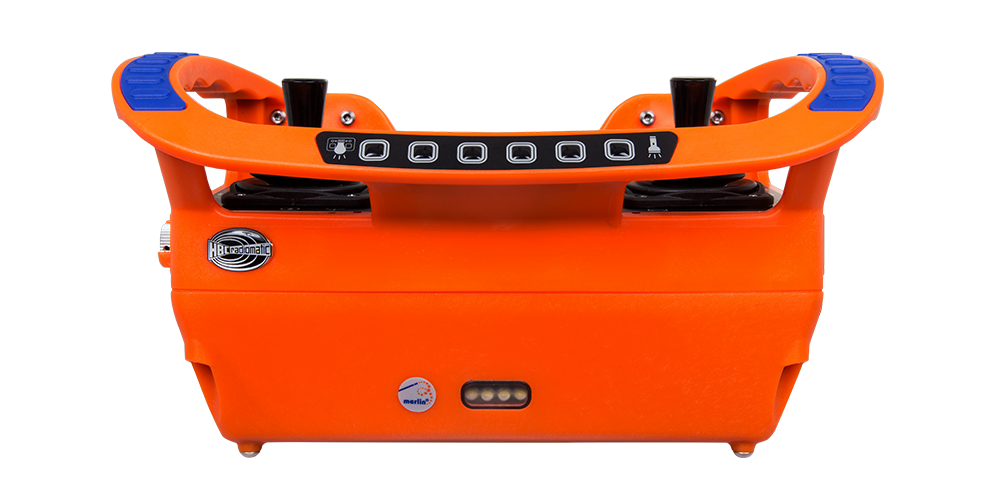

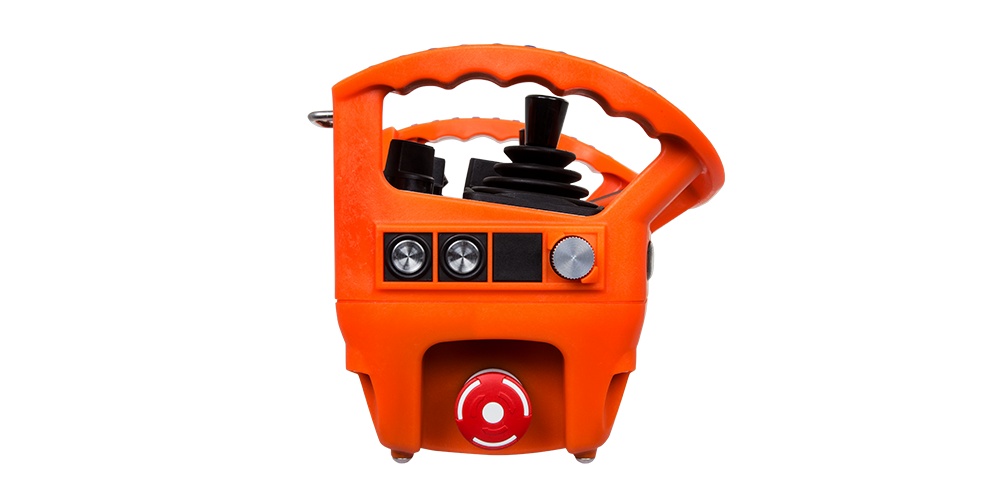

302 x 187 x 179 mm
(11.9 x 7.4 x 7.1 inches)
Service without downtime
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator
Safe transport of long and bulky goods.
Pre-selection of trolley / hoist
Efficiency and safety for cranes with 2 trolleys.
Share cranes and machines, optimize workload, and increase safety.
The valuable alternative for specific working conditions.
Bank switch for additional operating levels
= additional control functions
Activation only with direct visual contact (line of sight).
radiomatic® shock-off / roll-detect / zero-g / inclination switch
Intelligent safety features for specific emergency situations.
Safe release of defined functions
Efficient protection from unauthorized use
The safe speed limit.
Always on the right track.
Shut-down on implausible control commands
Intelligent protection from unintended operation.
radiomatic® report – HBC data logger
Useful operational data at hand.

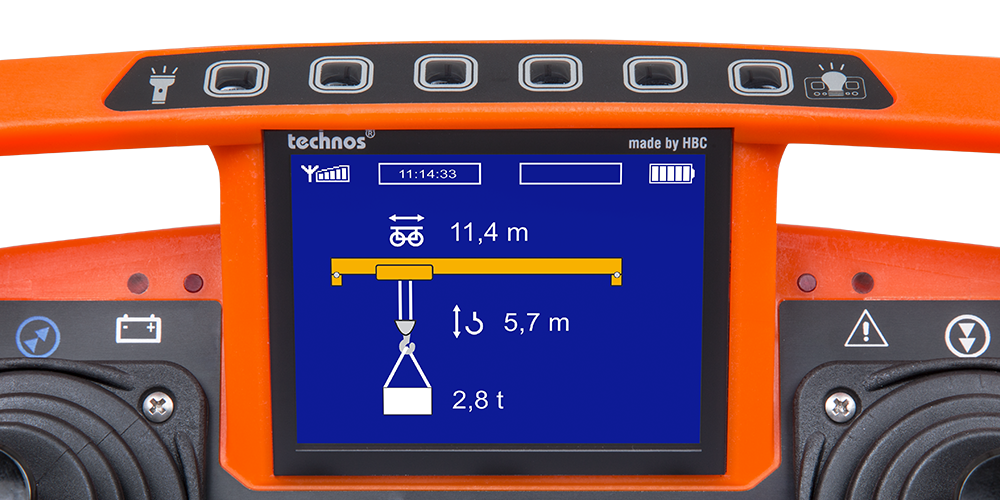

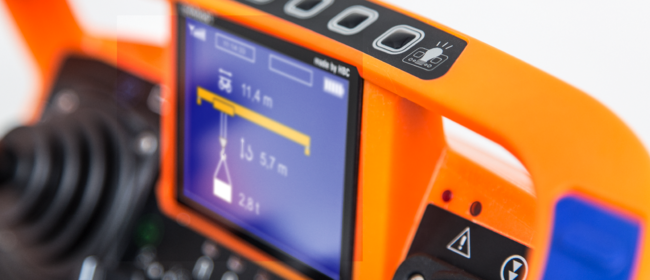

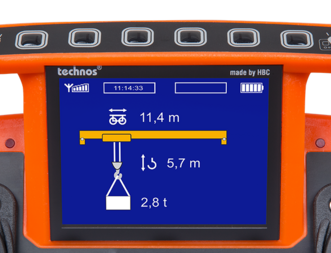

Data, information and warnings via configurable 3.5" color TFT
Information and warnings via LED
Information and warnings via transmitter vibration
Safe working with camera assistance.
radiomatic® photon 2CAM switch
The clever operator assistance with two video cameras.
radiomatic® photon MCS
The mobile camera assistance.
