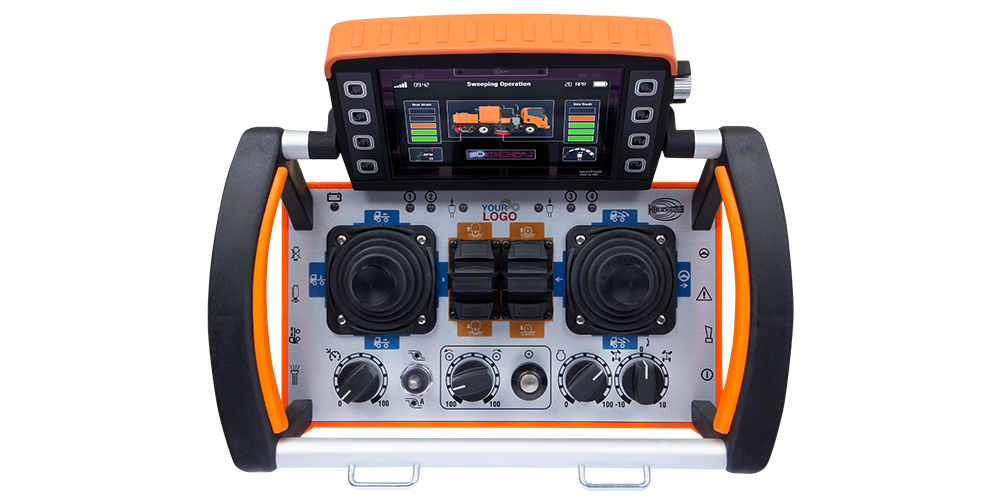

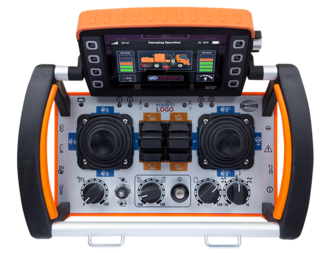

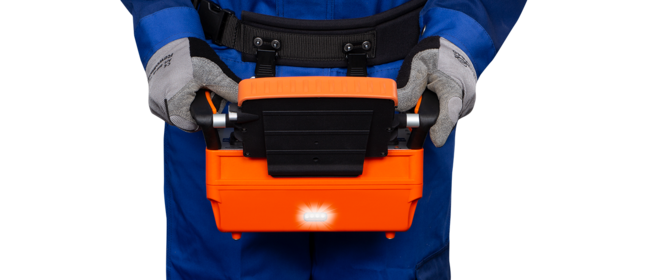

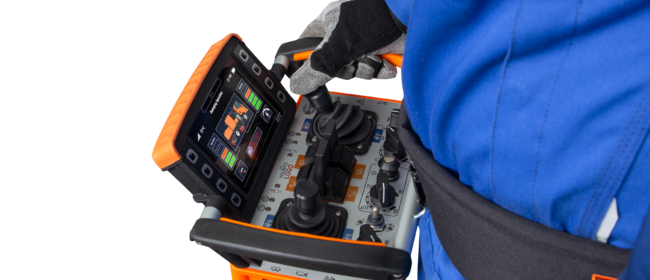

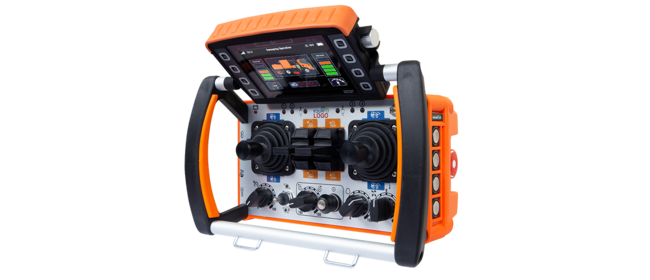

spectrum M

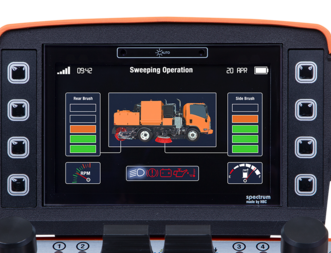

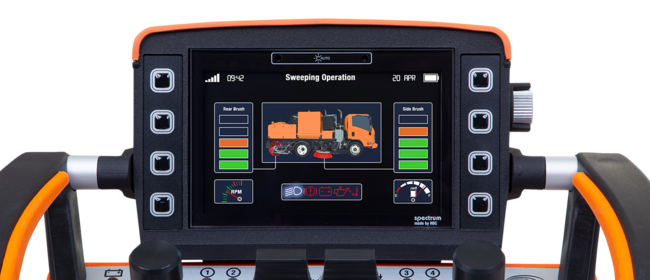

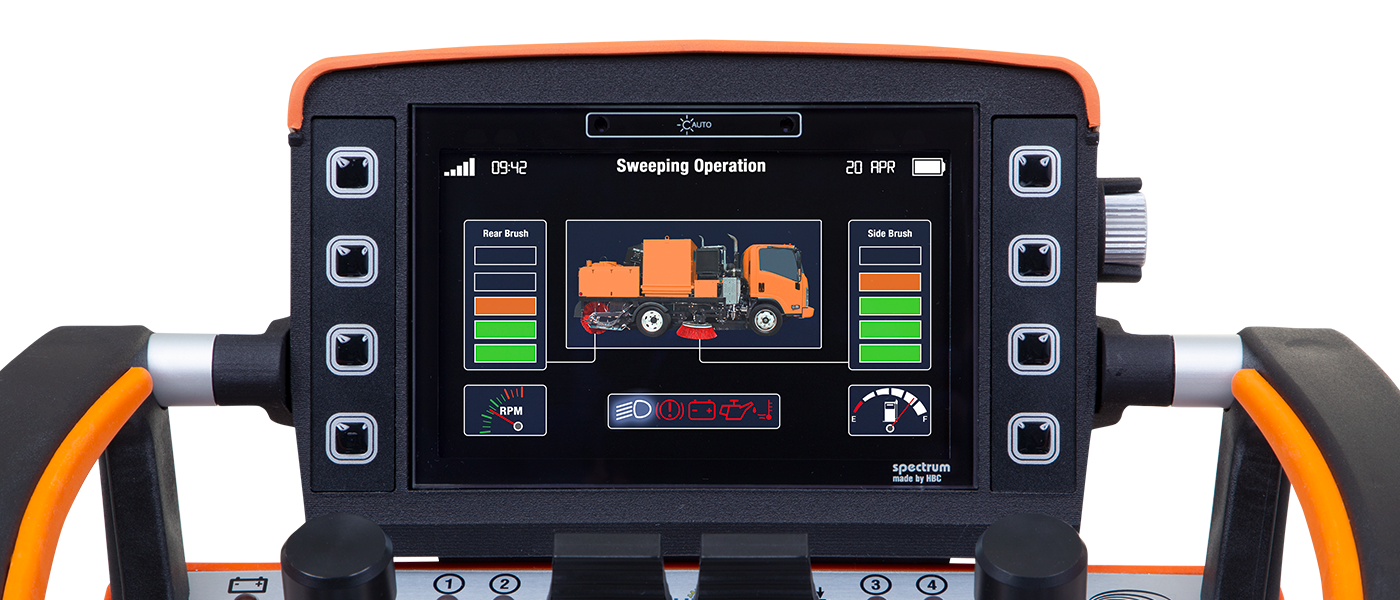

The all-rounder with high-performing 5“ color display.

spectrum M The all-rounder with high-performing 5“ color display.
spectrum M The all-rounder with high-performing 5“ color display.
spectrum M The all-rounder with high-performing 5“ color display.
spectrum M The all-rounder with high-performing 5“ color display.

Product description

spectrum M offers state-of-the-art 5“ display technology as well as a transmitter design which has proven its worth thousands of times. This control scores big thanks to its great versatility and provides virtually unlimited design possibilities for lots of different applications.

  • Operation
  • Safety
  • Frequency management
  • Frequency ranges
  • Dimensions & specifications
  • Service concept
  • HBC features
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

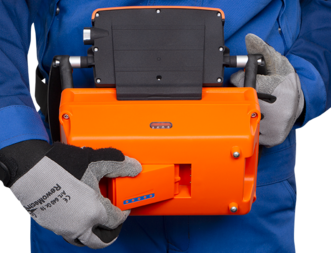

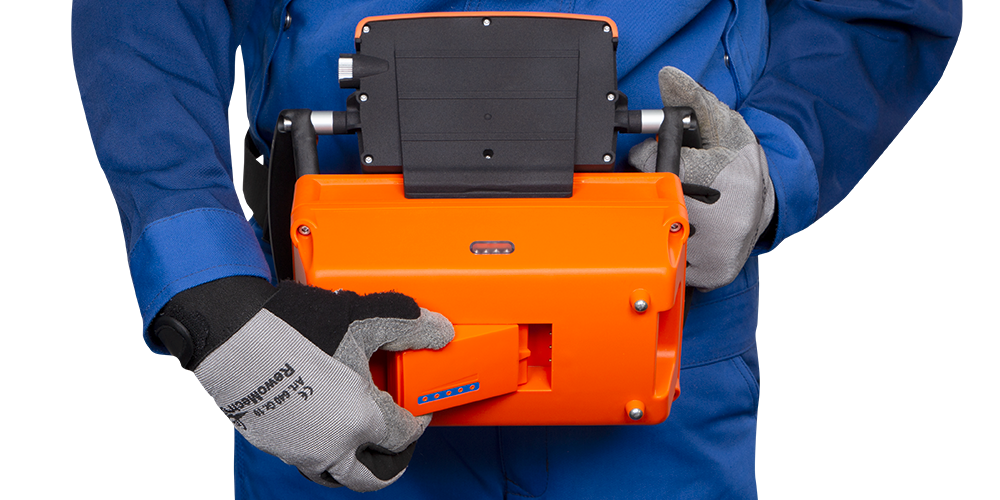

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

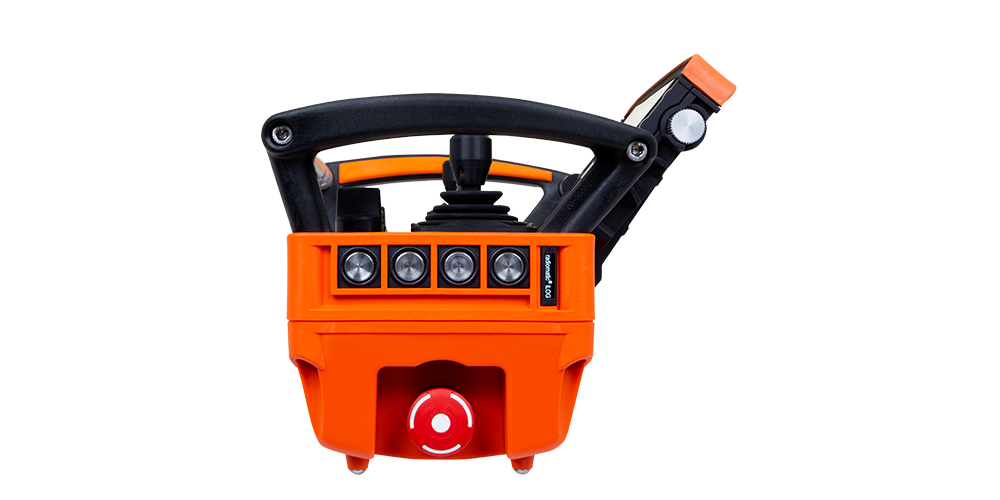

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Functional Safety | HBC-radiomatic GmbH

Functional Safety

As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

 | HBC-radiomatic GmbH

country-independent use:
2402 - 2480 MHz

 | HBC-radiomatic GmbH

country-specific use:
1790 - 1930 MHz

 | HBC-radiomatic GmbH

country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-20 °C … +70 °C (-4 °F … 158° F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 2.7 kg (6.0 lb.)

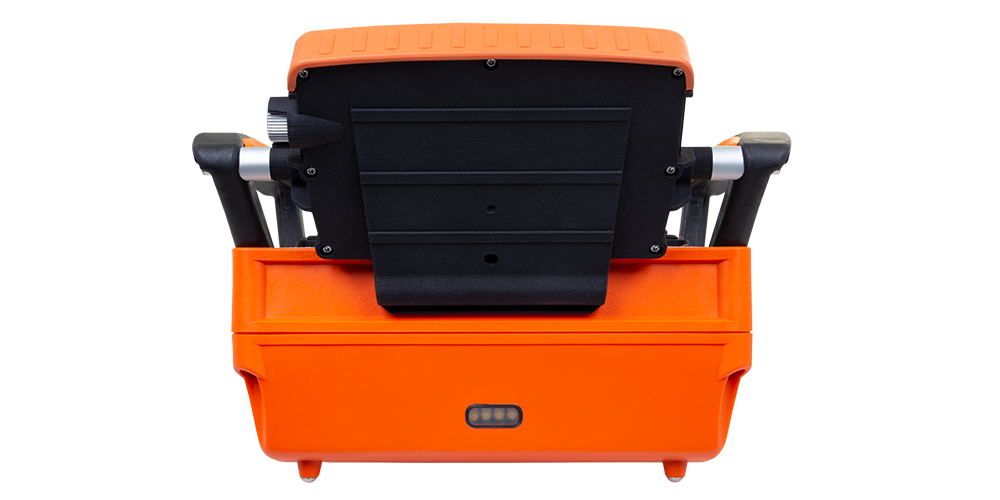

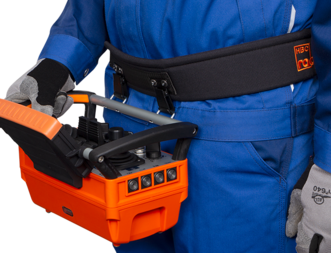

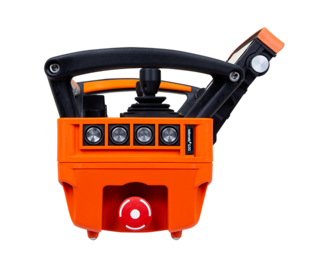

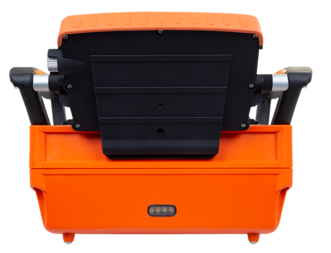

Dimensions: | HBC-radiomatic GmbH

Dimensions:

211 x 297 x 241 mm
(8.3 x 11.7 x 9.5 ")

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Typical applications

Industrial cranes & lift equipment
Industrial cranes & lift equipment

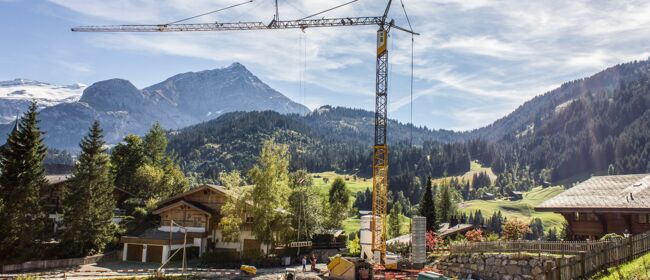

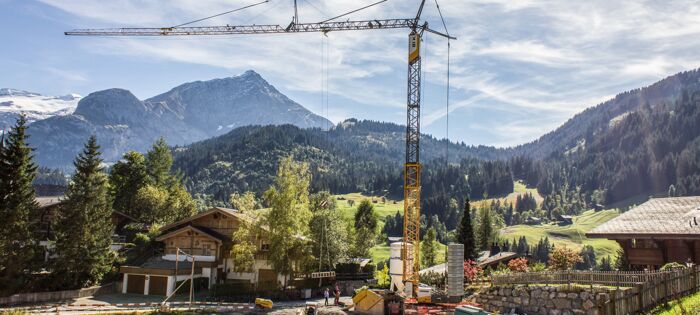

Construction cranes
Construction cranes
Construction machinery
Construction machinery
Vehicle technology
Vehicle technology
Industrial & intralogistics applications
Industrial & intralogistics applications
Mining & drilling technology
Mining & drilling technology
Harbor & ship technology
Harbor & ship technology
Forestry & agricultural applications
Forestry & agricultural applications
Firefighting equipment
Firefighting equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Construction cranes
Construction cranes
Construction machinery
Construction machinery
Vehicle technology
Vehicle technology
Industrial & intralogistics applications
Industrial & intralogistics applications
Mining & drilling technology
Mining & drilling technology
Harbor & ship technology
Harbor & ship technology
Forestry & agricultural applications
Forestry & agricultural applications
Firefighting equipment
Firefighting equipment
