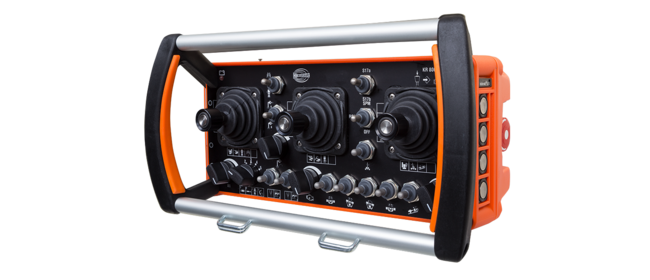

spectrum 3

The renowned spectrum classic with XL equipment.

spectrum 3 The renowned spectrum classic with XL equipment.
spectrum 3 The renowned spectrum classic with XL equipment.
spectrum 3 The renowned spectrum classic with XL equipment.
spectrum 3 The renowned spectrum classic with XL equipment.

Product description

Robust spectrum quality for large applications. Many features and functions for individual configuration. Also available with HBC linear levers.

  • Operation
  • Safety
  • Frequency management
  • Frequency ranges
  • Dimensions & specifications
  • Service concept
  • HBC features (optional)
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

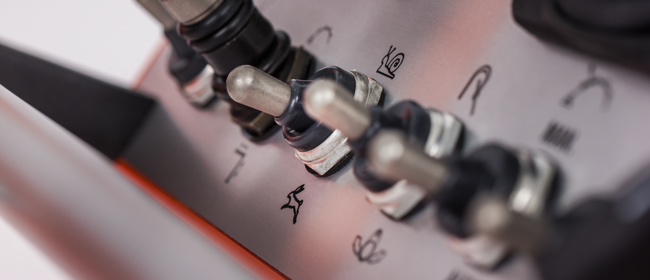

Operating elements & control functions

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Manual frequency switch | HBC-radiomatic GmbH

Manual frequency switch

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic (with NEC / CEC approval only)

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

radiomatic® AFM | HBC-radiomatic GmbH

radiomatic® AFM

= fully automatic

 | HBC-radiomatic GmbH

country-independent use:
2402 - 2480 MHz

 | HBC-radiomatic GmbH

country-specific use:
1790 - 1930 MHz

 | HBC-radiomatic GmbH

country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 3.0 kg

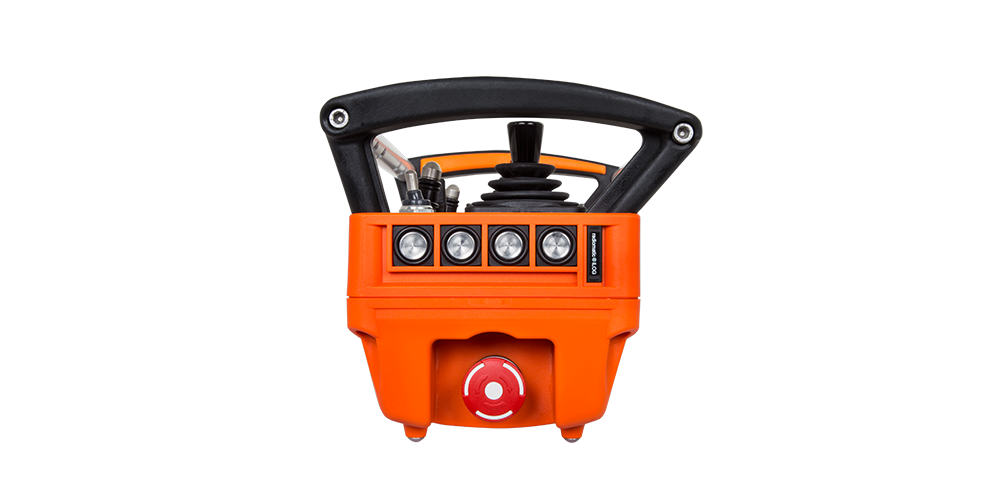

Dimensions: | HBC-radiomatic GmbH

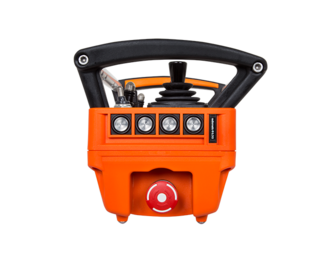

Dimensions:

178 x 358 x 182 mm
(7.00 x 14.09 x 7.17 in.)

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Tandem operation | HBC-radiomatic GmbH

Tandem operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Catch-release | HBC-radiomatic GmbH

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Cable control | HBC-radiomatic GmbH

Cable control

The valuable alternative for specific working conditions.

Bank switch for additional operating levels | HBC-radiomatic GmbH

Bank switch for additional operating levels

= additional control functions

radiomatic® iBAR | HBC-radiomatic GmbH

radiomatic® iBAR

The intelligent rollover bar with integrated functions.

radiomatic® CPS | HBC-radiomatic GmbH

radiomatic® CPS

Change the battery without downtime.

radiomatic® infrakey | HBC-radiomatic GmbH

radiomatic® infrakey

Activation only with direct visual contact (line of sight).

radiomatic® shock-off / roll-detect / zero-g / inclination switch | HBC-radiomatic GmbH

radiomatic® shock-off / roll-detect / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

Enabling switch | HBC-radiomatic GmbH

Enabling switch

Safe release of defined functions

merlin® TUC (Transmitter User Card) – user identification | HBC-radiomatic GmbH

merlin® TUC (Transmitter User Card) – user identification

The easy and safe arrangement of access rights.

Micro drive | HBC-radiomatic GmbH

Micro drive

The safe speed limit.

Orthogonal drive | HBC-radiomatic GmbH

Orthogonal drive

Always on the right track.

Front panel lighting | HBC-radiomatic GmbH

Front panel lighting

For a clear view in low light conditions.

Information and warnings via LED | HBC-radiomatic GmbH

Information and warnings via LED

Information and warnings via transmitter vibration | HBC-radiomatic GmbH

Information and warnings via transmitter vibration

Typical applications

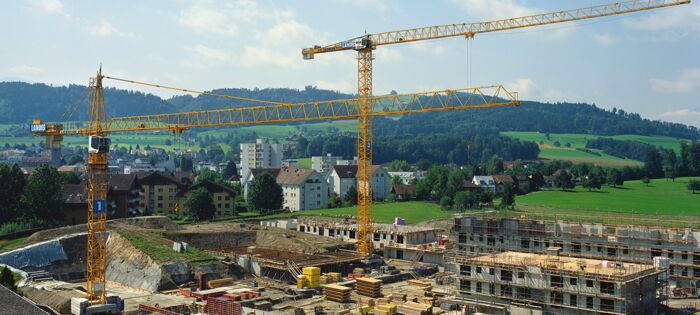

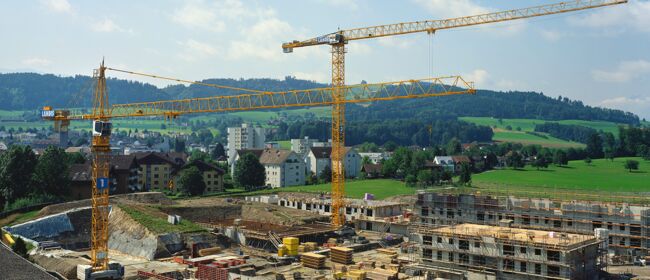

Construction cranes
Construction cranes

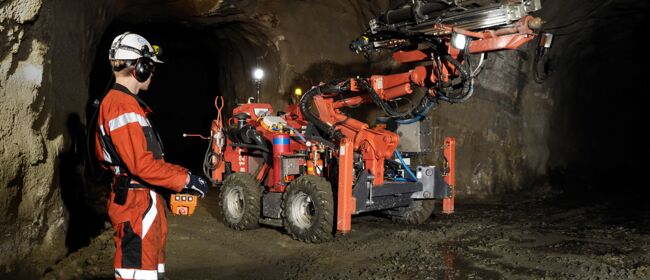

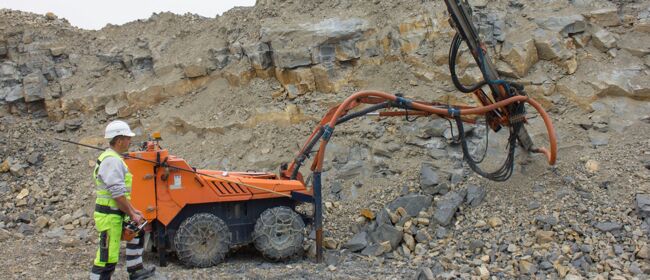

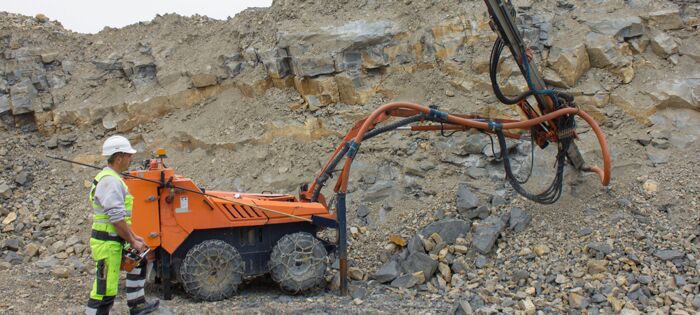

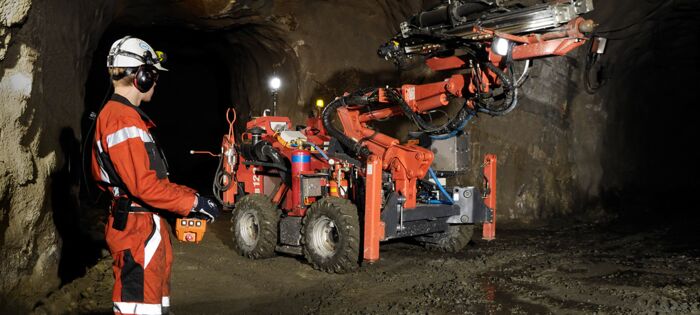

Mining & drilling technology
Mining & drilling technology

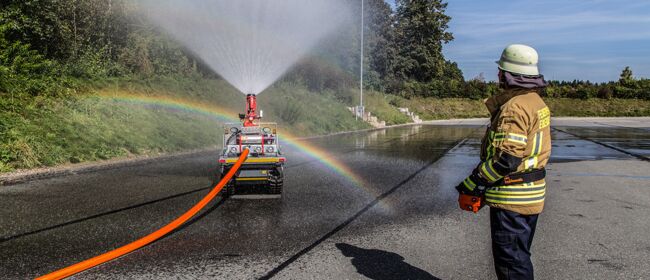

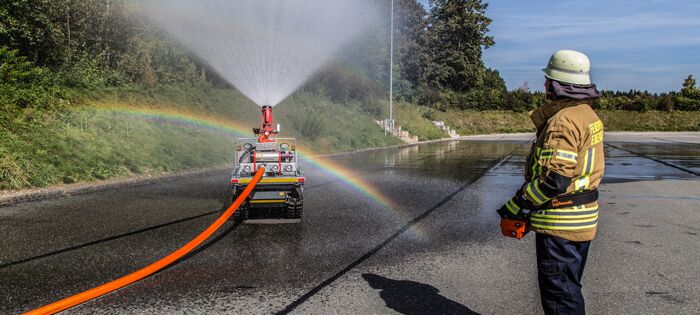

Firefighting
Firefighting

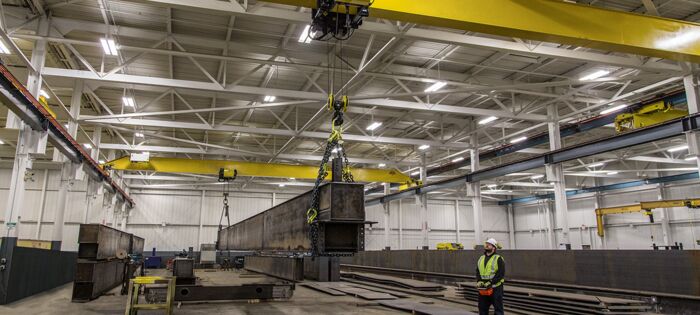

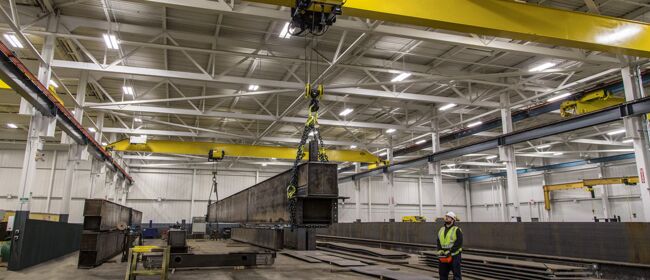

Industrial cranes & lift equipment
Industrial cranes & lift equipment
Mining & drilling technology
Mining & drilling technology
Construction cranes
Construction cranes
Mining & drilling technology
Mining & drilling technology
Firefighting
Firefighting
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Mining & drilling technology
Mining & drilling technology

Versions

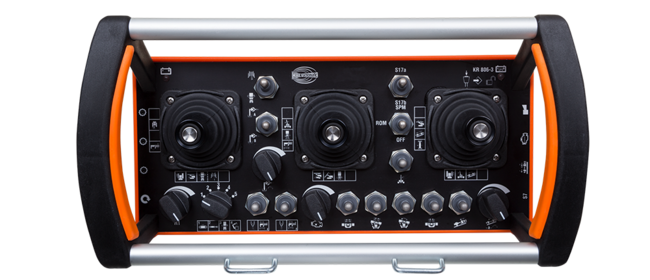

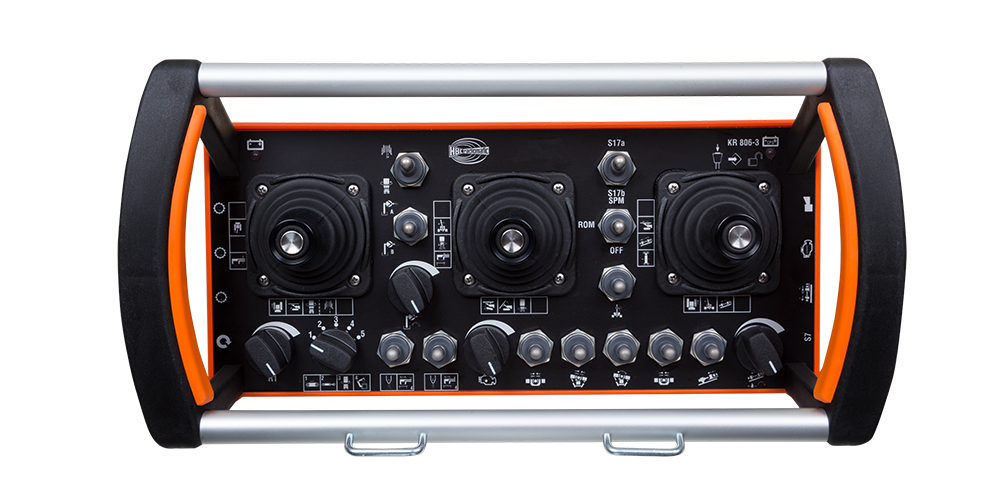

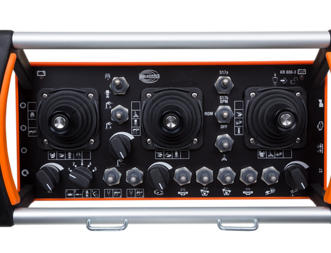

Version with joysticks

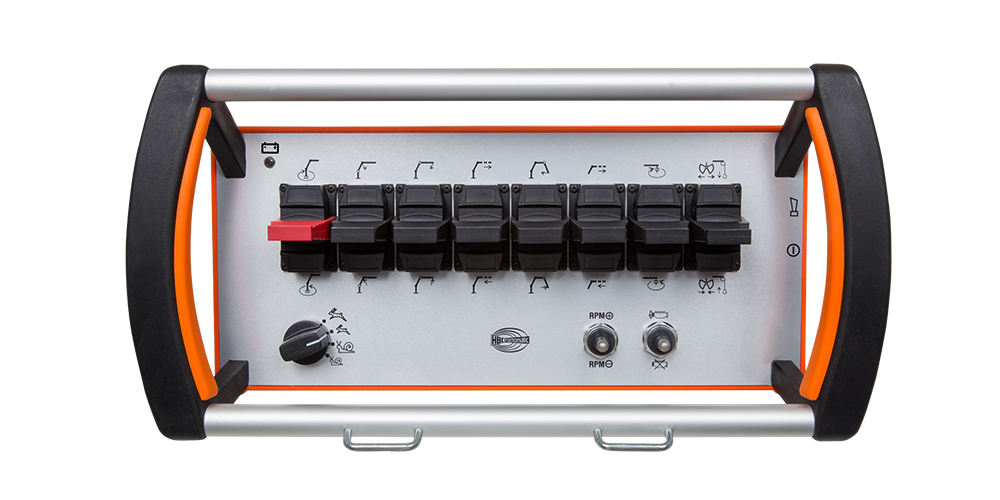

Version with lienar levers
Version with acid-proof front panel and joysticks
Version with radiomatic® iBAR
Customized version
Version with customized operating elements
Customized version
Customized version
Customized version
Version with joysticks
Version with joysticks
Version with lienar levers
Version with lienar levers
Version with acid-proof front panel and joysticks
Version with acid-proof front panel and joysticks
Version with radiomatic® iBAR
Version with radiomatic® iBAR
Customized version
Customized version
Version with customized operating elements
Version with customized operating elements
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version

Views

Battery exchange
Battery exchange

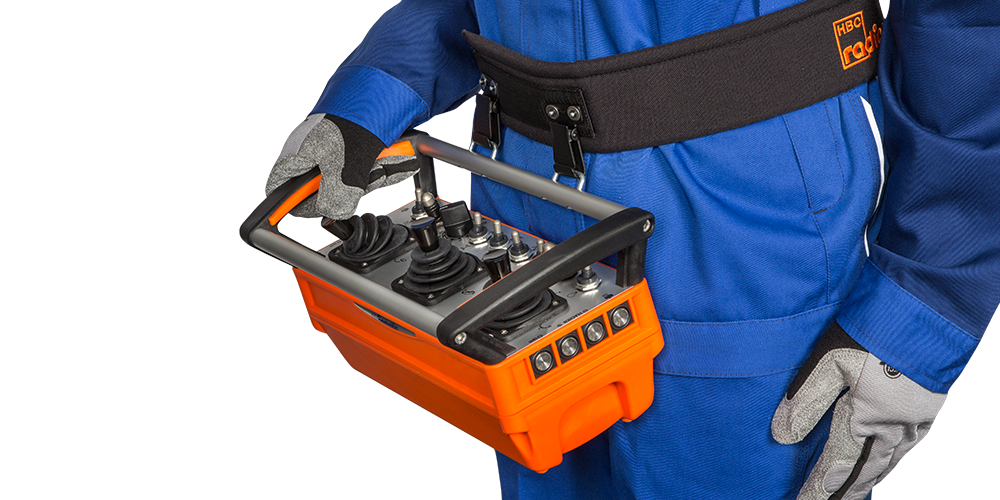

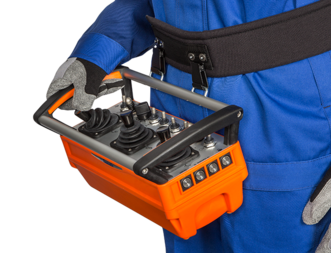

Carrying by hip belt
Carrying by hip belt
