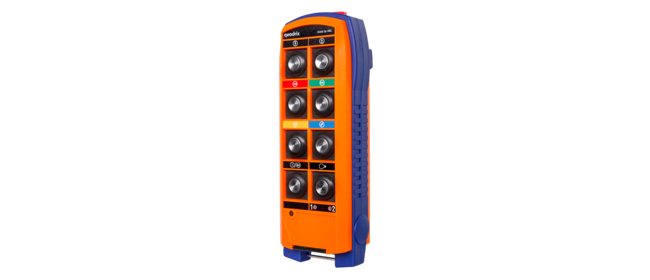

Product description

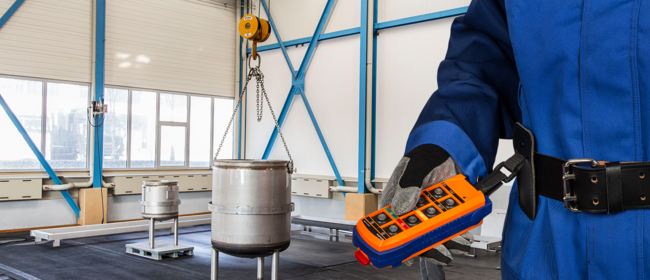

Ideal for standard industrial cranes and machines with 3 two-step drives. Available with numerous HBC features.
- Operation
- Safety
- Frequency management
- Frequency ranges
- Dimensions & specifications
- Service concept
- HBC features
- Extended control concepts
- Performance & availability
- Enhanced safety functions
- Feedback to the operator

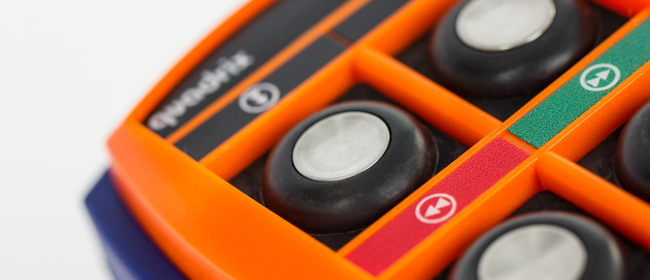

Operating elements & control functions

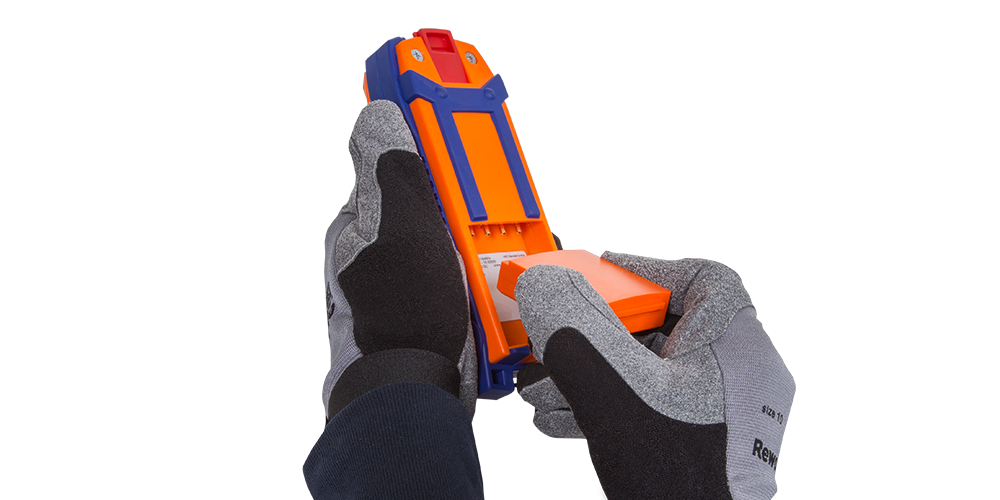

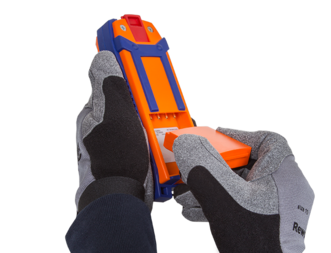

Battery technology
Indication
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Manual frequency switch
radiomatic® AFS
= partially automatic
Adaptive Frequency Hopping
= fully automatic
DECT
= fully automatic
country-independent use:
2402 - 2480 MHz
country-specific use:
1790 - 1930 MHz
country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
approx. 330 g (0.7 lb.)

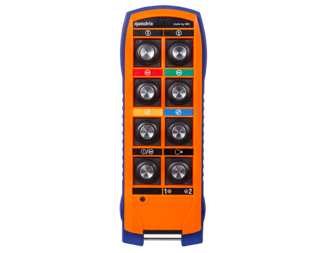

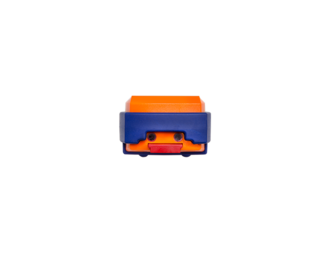

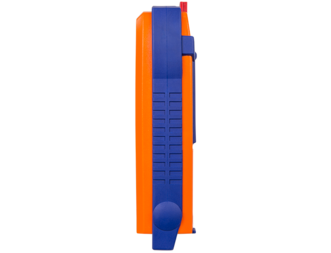

Dimensions:
180 x 65 x 43 mm
(7.1 x 2.6 x 1.7 in.)
radiomatic® iLOG
Service without downtime
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator
Tandem operation
Safe transport of long and bulky goods.
Pre-selection of trolley / hoist
Efficiency and safety for cranes with 2 trolleys.
Bank switch for additional operating levels
= additional control functions
radiomatic® infrakey
Activation only with direct visual contact (line of sight).
radiomatic® shock-off / roll-detect / zero-g / inclination switch
Intelligent safety features for specific emergency situations.
merlin® TUC (Transmitter User Card) – user identification
The easy and safe arrangement of access rights.
Information and warnings via LED

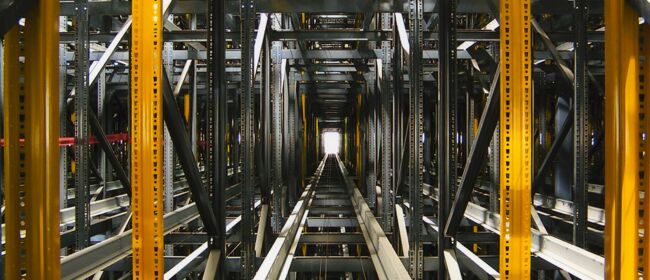

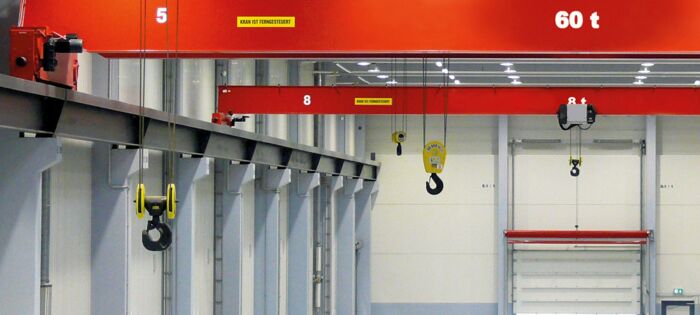

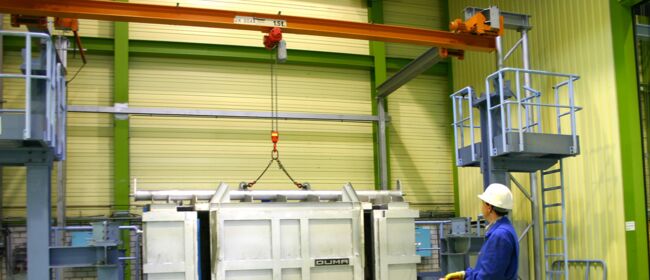

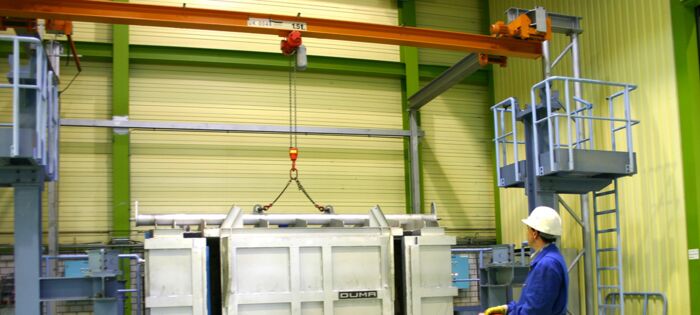

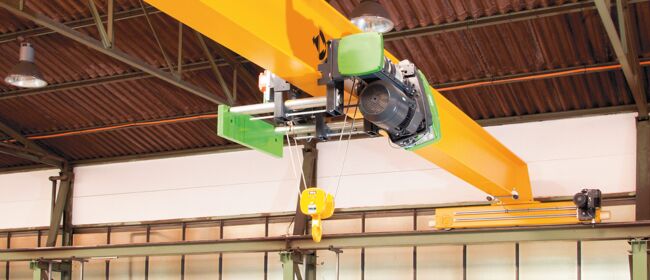

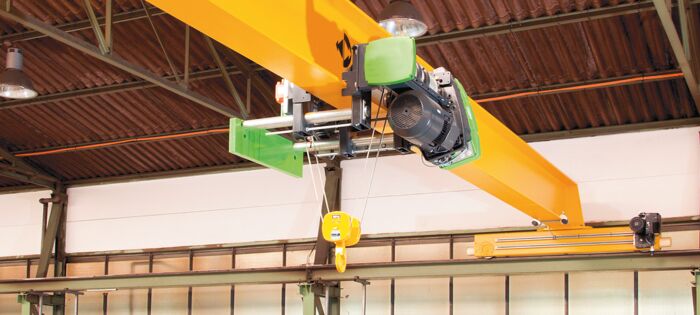

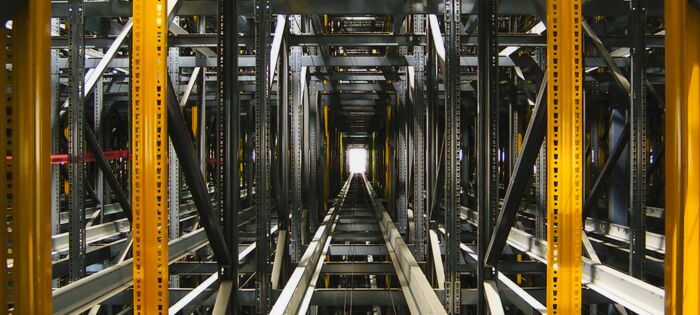

Typical applications

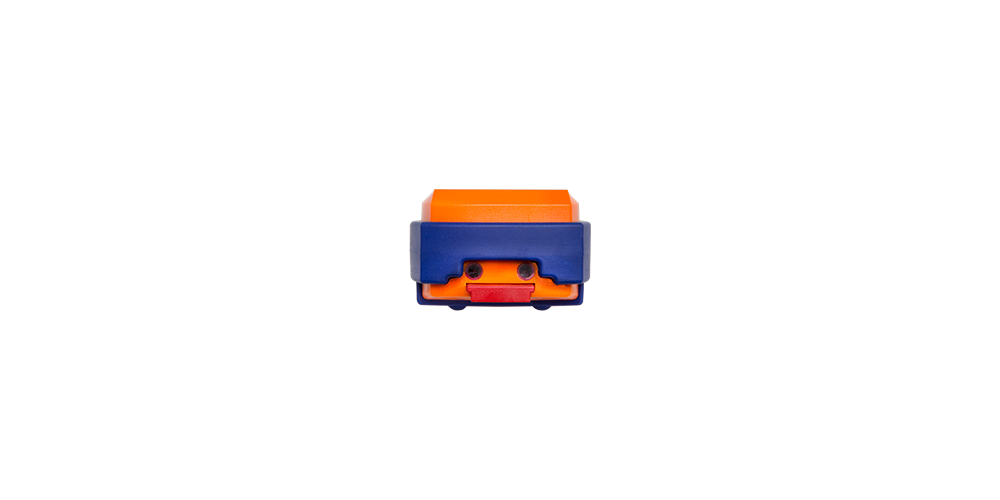

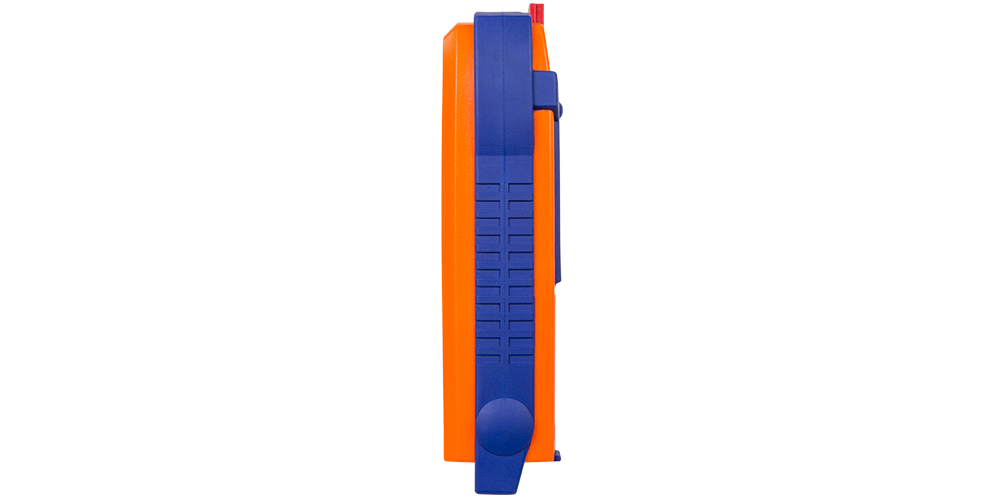

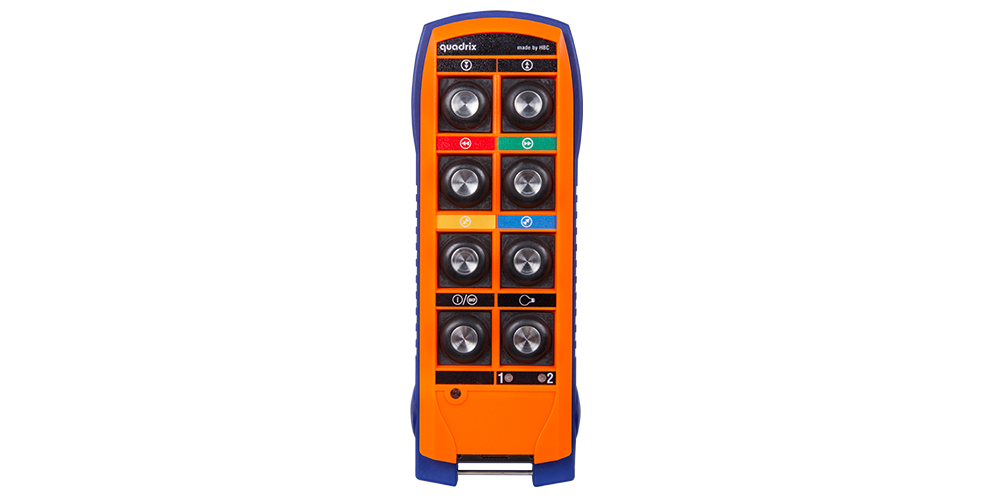

Views
