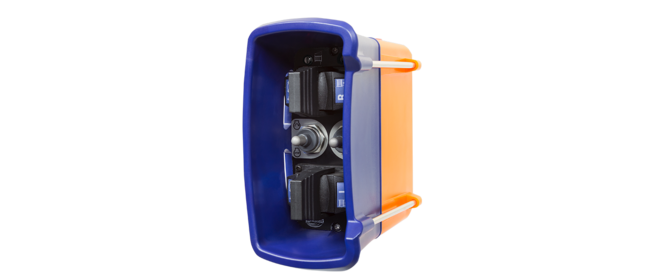

patrol L

The compact lightweight solution for up to 2 stepless drives.

patrol L The compact lightweight solution for up to 2 stepless drives.
patrol L The compact lightweight solution for up to 2 stepless drives.
patrol L The compact lightweight solution for up to 2 stepless drives.

Product description

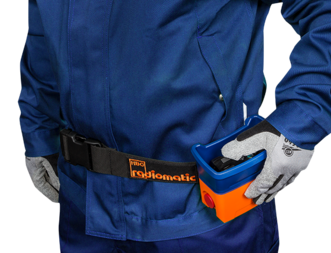

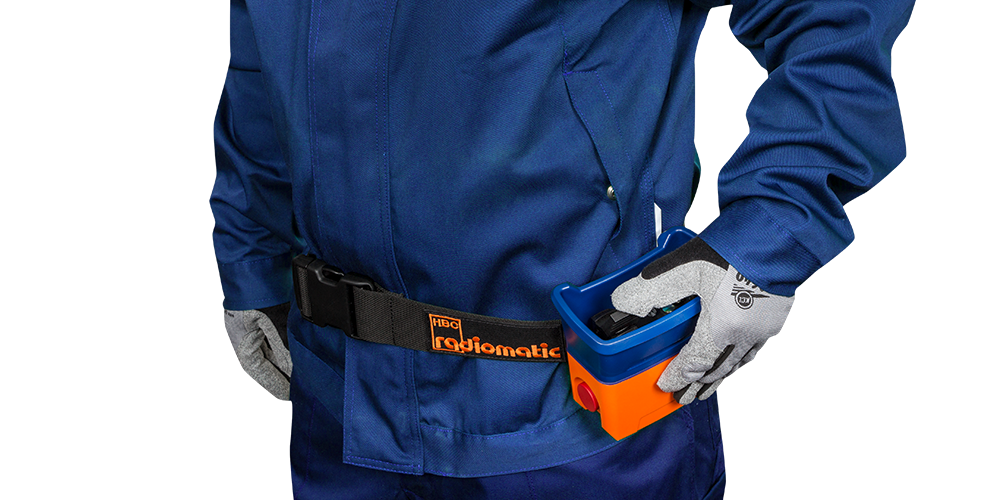

The radio control with linear levers and convenient carrying at the side. Compact, ergonomic, versatile.

  • Operation
  • Safety
  • Frequency management
  • Frequency ranges
  • Dimensions & specifications
  • HBC features
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

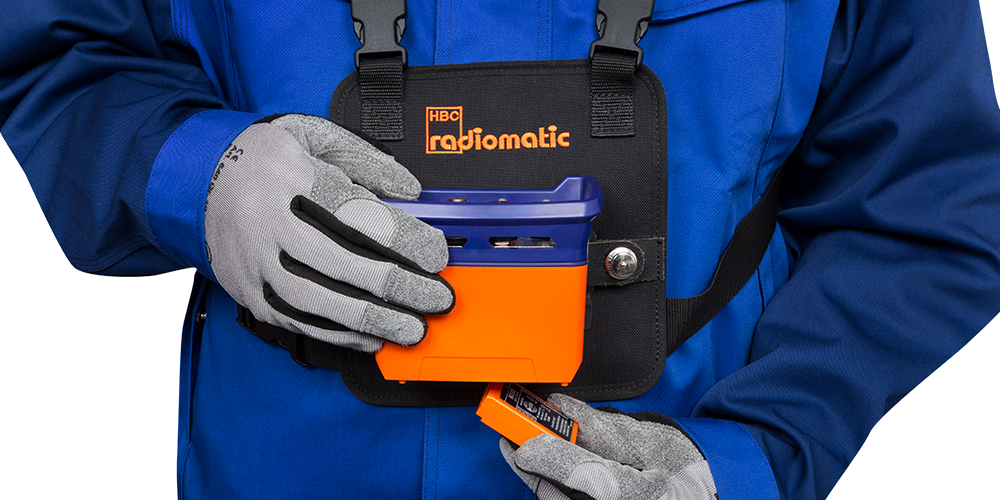

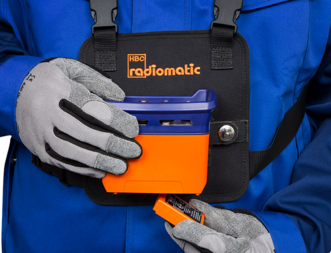

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start sequence.

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Manual frequency switch | HBC-radiomatic GmbH

Manual frequency switch

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

 | HBC-radiomatic GmbH

country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz

 | HBC-radiomatic GmbH

country-independent use:
2402 - 2480 MHz

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 630 g (1.4 lb.)

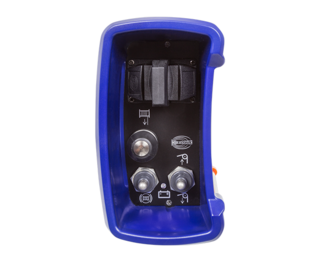

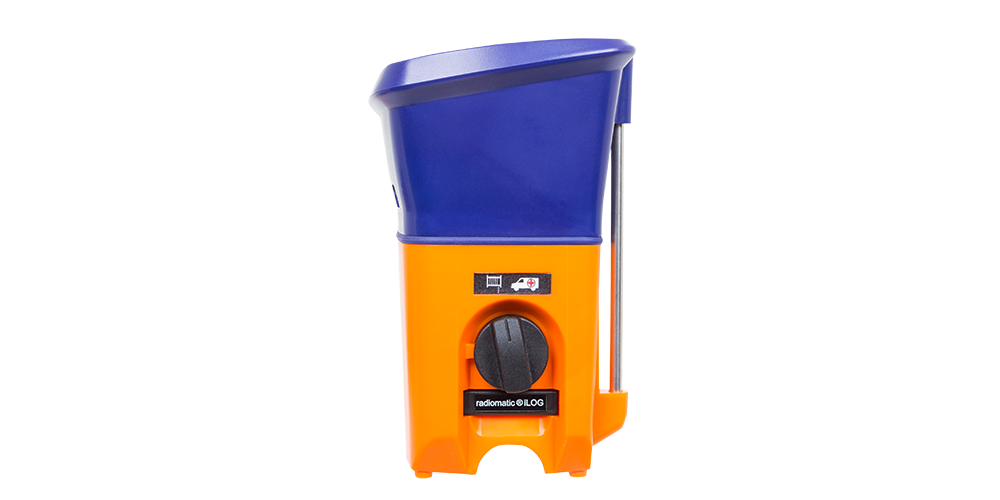

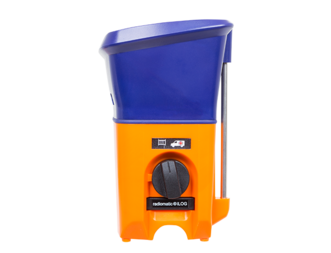

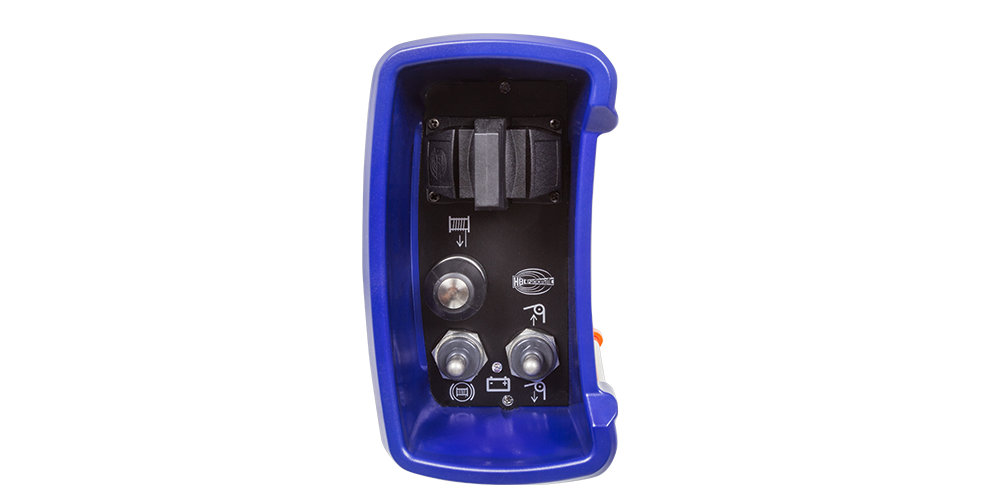

Dimensions: | HBC-radiomatic GmbH

Dimensions:

142 mm x 127 mm x 81 mm (5.6" x 5.0" x 3.2")

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

radiomatic® shock-off / roll-detect / zero-g / inclination switch | HBC-radiomatic GmbH

radiomatic® shock-off / roll-detect / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

Information and warnings via transmitter vibration | HBC-radiomatic GmbH

Information and warnings via transmitter vibration

Information and warnings via LED | HBC-radiomatic GmbH

Information and warnings via LED

Versions
