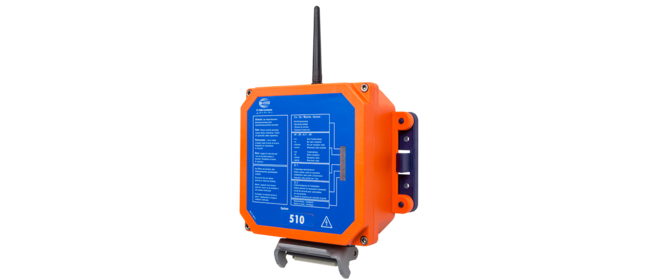

FSE 510

The versatile radio receiver with CAN interface.

FSE 510 The versatile radio receiver with CAN interface.
FSE 510 The versatile radio receiver with CAN interface.

Product description

High-performing radio technology with many useful features. Slim dimensions and easy installation.

  • Basic equipment
  • Safety
  • Frequency management
  • Dimensions & specifications
  • HBC features
  • Extended control concepts
  • Enhanced safety functions
  • Reporting
  • Feedback to the operator
Output elements | HBC-radiomatic GmbH

Output elements

Control functions | HBC-radiomatic GmbH

Control functions

Indication | HBC-radiomatic GmbH

Indication

Antenna | HBC-radiomatic GmbH

Antenna

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing, protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

1 kg (2.2 lbs.)

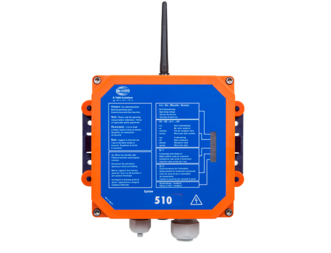

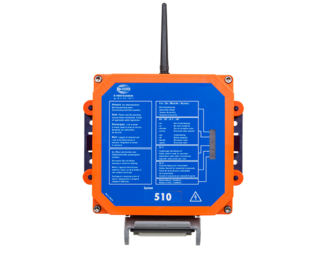

Dimensions: | HBC-radiomatic GmbH

Dimensions:

165 x 165 x 70 mm
(6.5 x 6.5 x 2.8 in.)

Power supply: | HBC-radiomatic GmbH

Power supply:

24 – 48 V AC, 42 – 240 V AC, 10 – 30 V DC

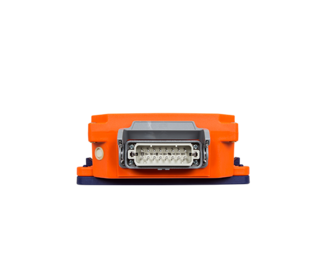

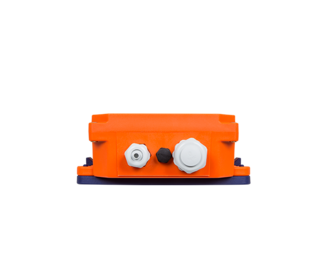

Connection: | HBC-radiomatic GmbH

Connection:

HAN®-16A or HAN®-25D, or metric cable glands M20 / M25

Installation: | HBC-radiomatic GmbH

Installation:

Snap-in wall bracket (shock mounts optional)

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Reporting | HBC-radiomatic GmbH

Reporting

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator
