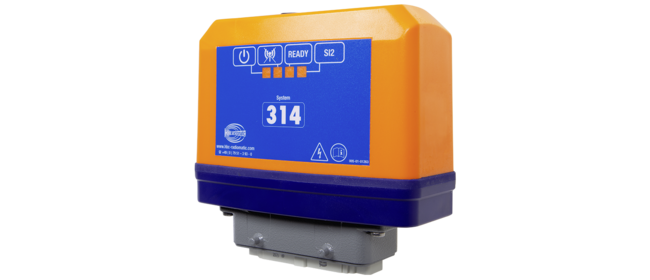

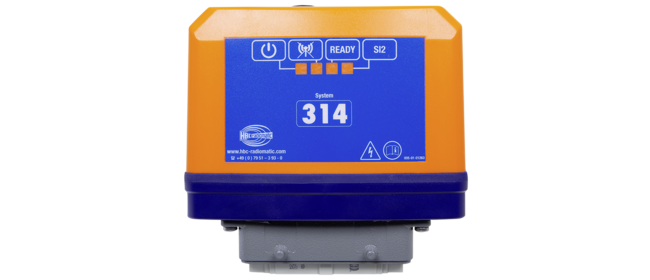

FSE 314

Plug & Play for industrial cranes and hoists with 3 two-step drives and trolley pre-selection.

FSE 314 Plug & Play for industrial cranes and hoists with 3 two-step drives and trolley pre-selection.
FSE 314 Plug & Play for industrial cranes and hoists with 3 two-step drives and trolley pre-selection.

Product description

FSE 314 offers customized radio technology for industrial cranes with up to 3 two-step drives and pre-selection of trolley / hoist. The plug & play radio receiver can be mounted directly without any wiring effort. This saves time and reduces cost. With an UL/CSA 61010-1 and UL/CSA certification 61010-2-201, the FSE 314 is ideally suitable for the North American market.

  • Basic equipment
  • Safety
  • Frequency management
  • merlin® technology
  • Dimensions & specifications
Output elements | HBC-radiomatic GmbH

Output elements

Control functions | HBC-radiomatic GmbH

Control functions

Indication | HBC-radiomatic GmbH

Indication

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic

merlin® | HBC-radiomatic GmbH

merlin®

Efficient, flexible, easy to service

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

PC-ABS UL94 V-0

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

680 g (1.5 lb.)

Dimensions: | HBC-radiomatic GmbH

Dimensions:

152 x 147 x 66 mm
(6.0" x 5.8" x 2.6")

Power supply: | HBC-radiomatic GmbH

Power supply:

24 – 48 V AC, 100 – 240 V AC

Connection: | HBC-radiomatic GmbH

Connection:

Harting Han® 16B; Harting Han® 24B; direct mounting

Installation: | HBC-radiomatic GmbH

Installation:

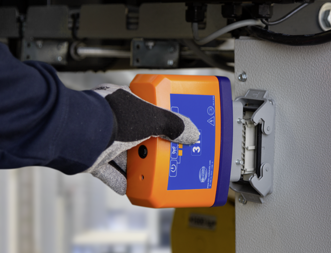

direct mounting

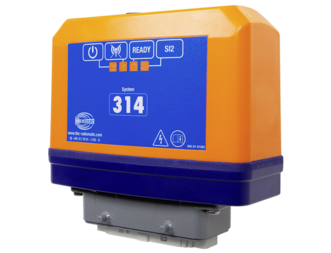

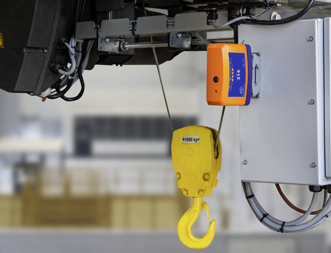

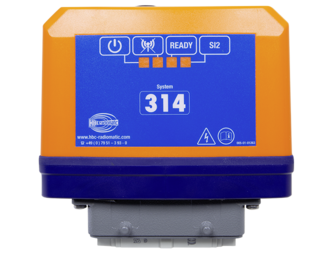

Views
