optojog

The operating element featuring infinite rotation, clear LED position indication and variable functionalities.

optojog <p>The operating element featuring infinite rotation, clear LED position indication and variable functionalities.</p>
optojog <p>The operating element featuring infinite rotation, clear LED position indication and variable functionalities.</p>

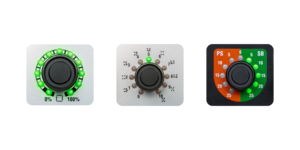

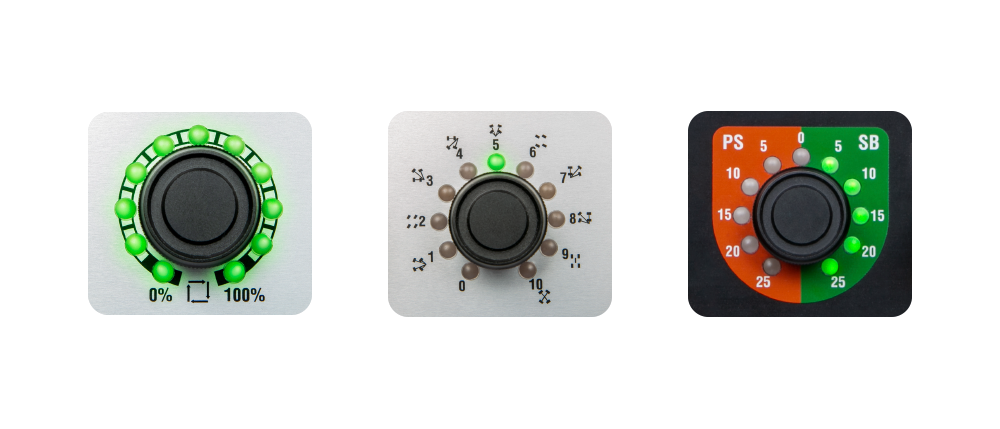

optojog is an innovative operating element for the control of a variety of machine functions. This new feature is available with various versions:

  • for setting a switchable output value ("Value Select").
  • for the preselection of operating modes ("Mode Select").
  • for choosing and controlling the direction of travel ("Steering Control").


How it works:

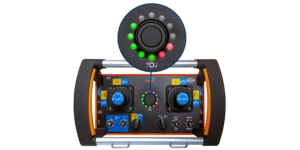

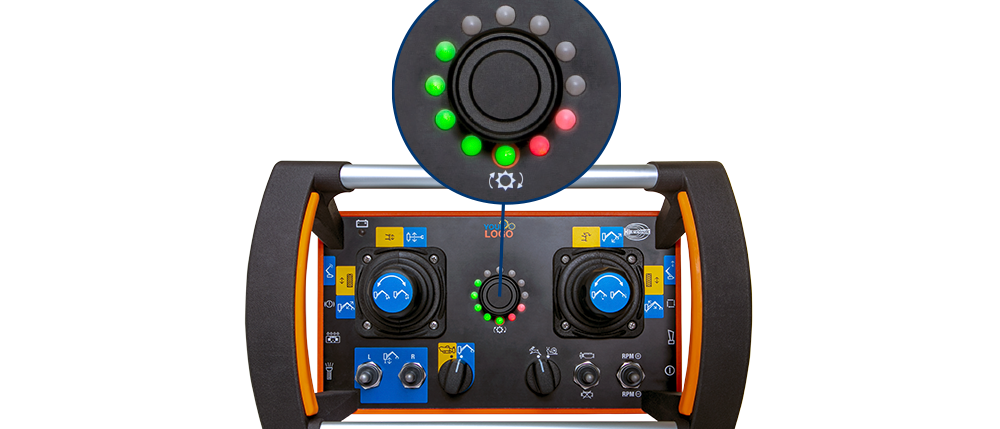

  • optojog comes with 24 detents spanning its complete 360° rotation and up to 12 LEDs can be positioned around circumference of the switch.
  • By illuminating in green or red, they indicate the position and status of the respective optojog functionality.
  • In addition, the operator can customize the available functions using machine feedback. For example, certain values can be locked and the red LEDs illuminated to indicate which values cannot be selected.


Benefits at a glance:

  • Infinite rotation allows for convenient and intuitive operation.
  • Perfect visibility via colored LED indication.
  • Customized labeling of functions available on the transmitter's front panel.
  • The operator can choose between saving the selected position or setting a default value when the system is restarted.


Application options:

  • Serves as an intuitive human-machine interface (HMI) for the operator.
  • Allows for interactive machine control and customized user control.
  • Offers additional safety: For example, machine feedback can be used to automatically lock functions.


For detailed information click here or contact us. Our sales team will be glad to advise by e-mail at sales@radiomatic.com or by phone at +49 7951 393-550.
