The two-step enabling switch is a special element which has to be operated to enable a set of defined functions.
- Working safety during maintenance and service work on or in the machine is considerably increased.
- For applications with more than one operator, dangerous situations caused by misunderstandings are prevented.
How it works:

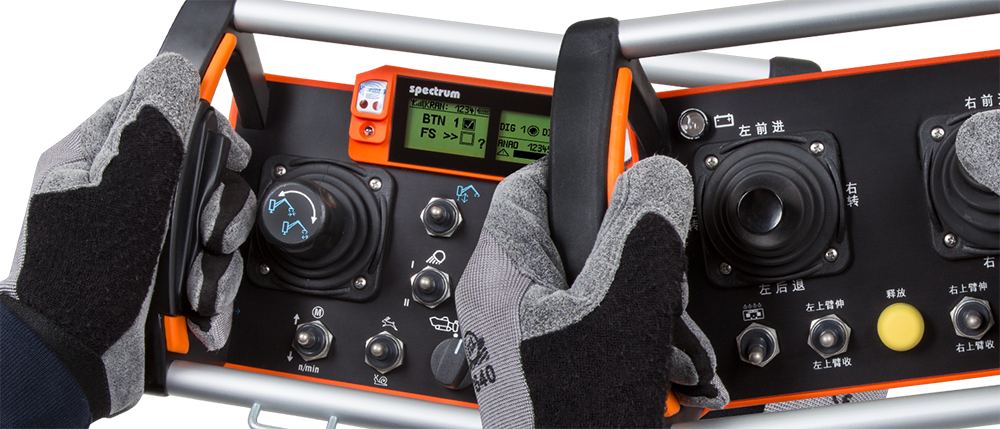

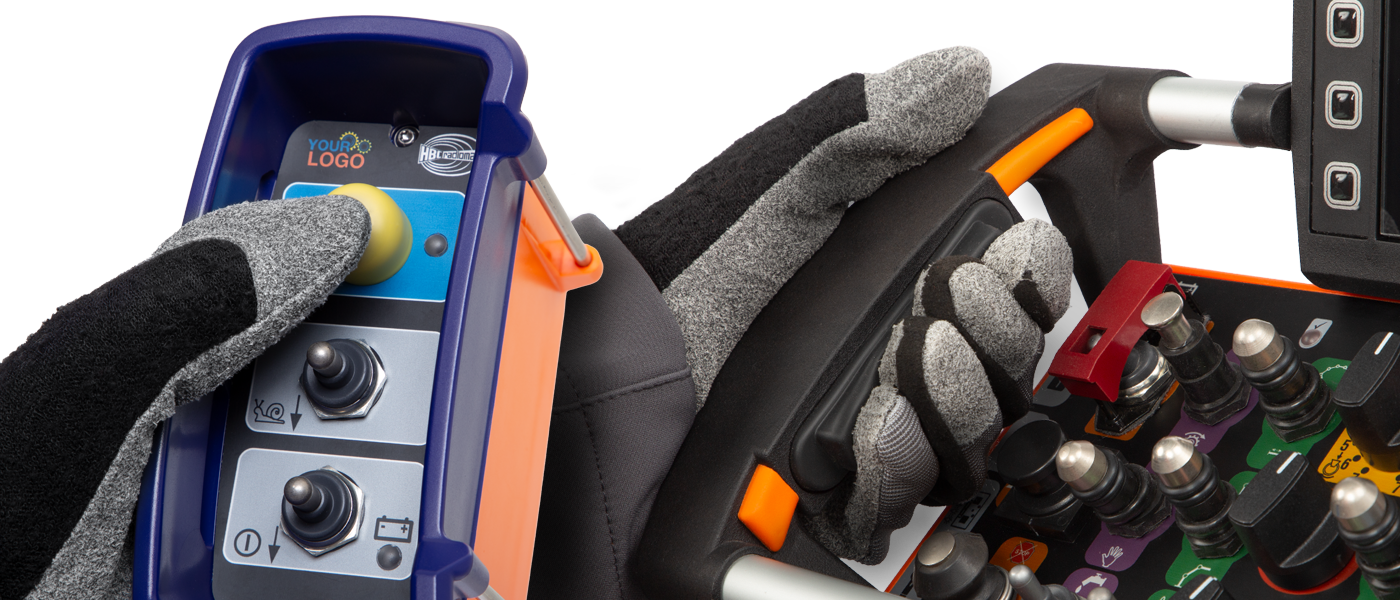

- The enabling switch is either integrated to the roll-over bar or placed on the front panel with a yellow button.
- In order for control commands to be sent to the machine, the operator has to press the button into the first step. Only then can the other operating elements be operated.
- If the operator releases the button or presses it into the second step all machine functions are immediately stopped.
- The enabling switch thus protects the operator from dangerous unintended operations of the machine in case the operator loses consciousness or control over the transmitter.
- For applications with more than one user, movement commands can only be performed if all operators press the enabling switch into the first step.
