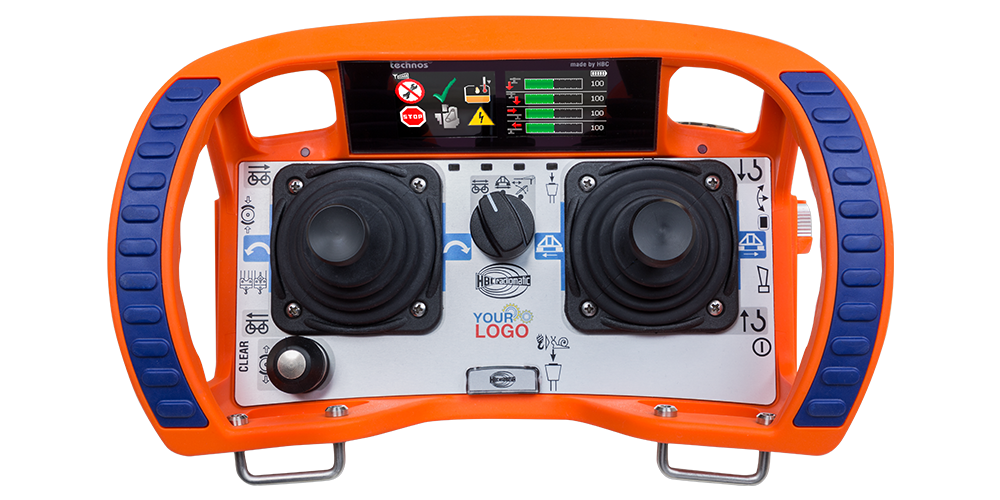

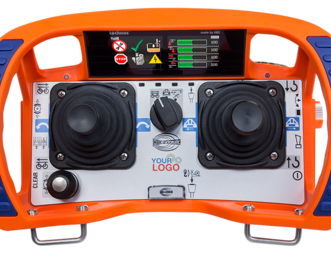

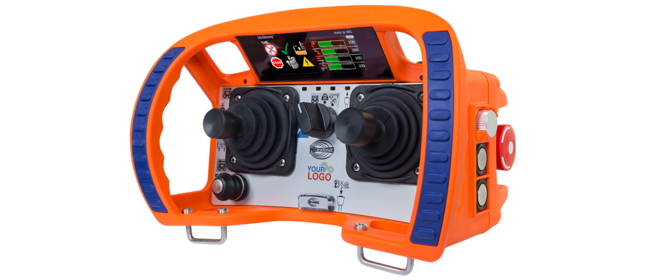

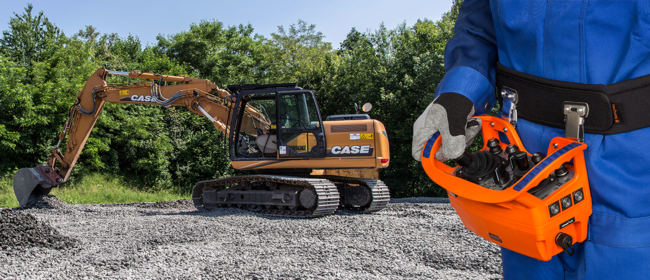

Compact transmitter with 2 state-of-the-art 1.77˝ TFTs. Available with joysticks, linear levers and many other operating elements for customized configuration. Numerous possible applications.
- Frequency management
- Dimensions & specifications
- Service concept
- HBC features (optional)
- Extended control concepts
- Performance & availability
- Enhanced safety functions
- Feedback to the operator
Operating elements & control functions
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Auto Movement Off
Automatic deactivation of movement functions after 5 min without command input.
As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)
Manual frequency switch
= partially automatic
= fully automatic
Adaptive Frequency Hopping
= fully automatic (with NEC / CEC approval only)
Housing material / protection class:
Protection class IP 65
Operating temperature range:
-20 °C … +70 °C
(-4 °F … +158 °F)
approx. 1.8 kg (3.97 lbs.)

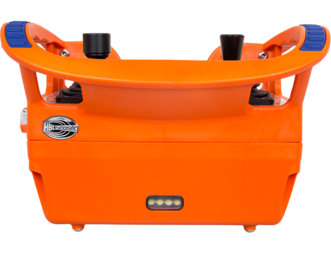

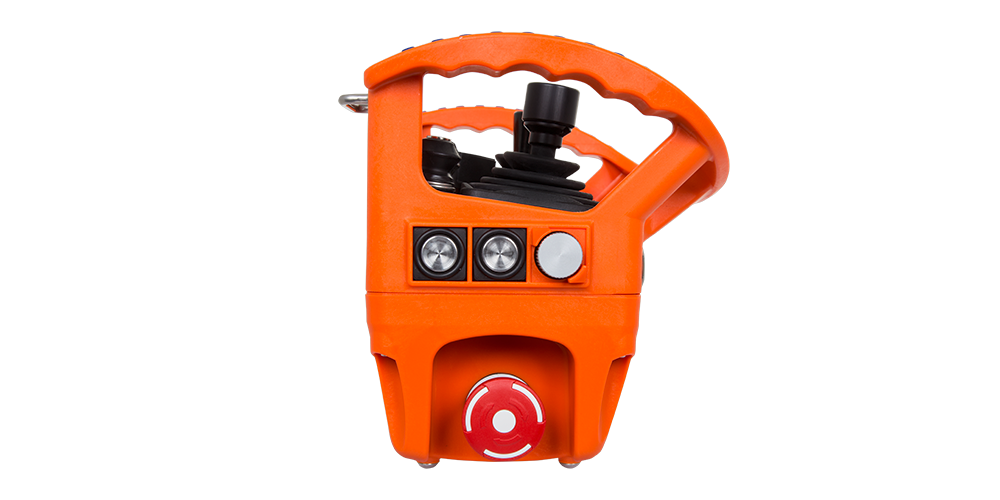

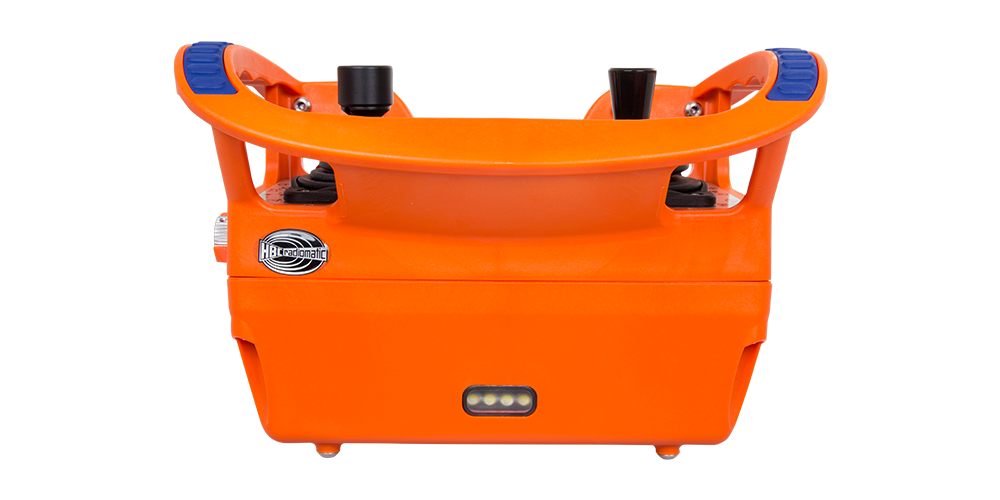

168 x 255 x 162 mm
(6.61 x 10.04 x 6.83 in.)
Service without downtime
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator

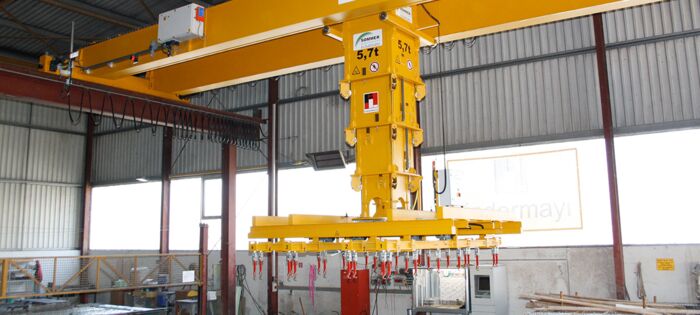

Safe transport of long and bulky goods.
Pre-selection of trolley / hoist
Efficiency and safety for cranes with 2 trolleys.
Share cranes and machines, optimize workload, and increase safety.
The valuable alternative for specific working conditions.
Bank switch for additional operating levels
= additional control functions
radiomatic® shock-off / roll-detect / zero-g / inclination switch
Intelligent safety features for specific emergency situations.
A better view in darkness.
Front panel lighting
For a clear view in low light conditions.
Activation only with direct visual contact (line of sight).
Safe release of defined functions
merlin® TUC (Transmitter User Card) – user identification
The easy and safe arrangement of access rights.
The safe speed limit.
Always on the right track.
Shut-down on implausible control commands
Intelligent protection from unintended operation.

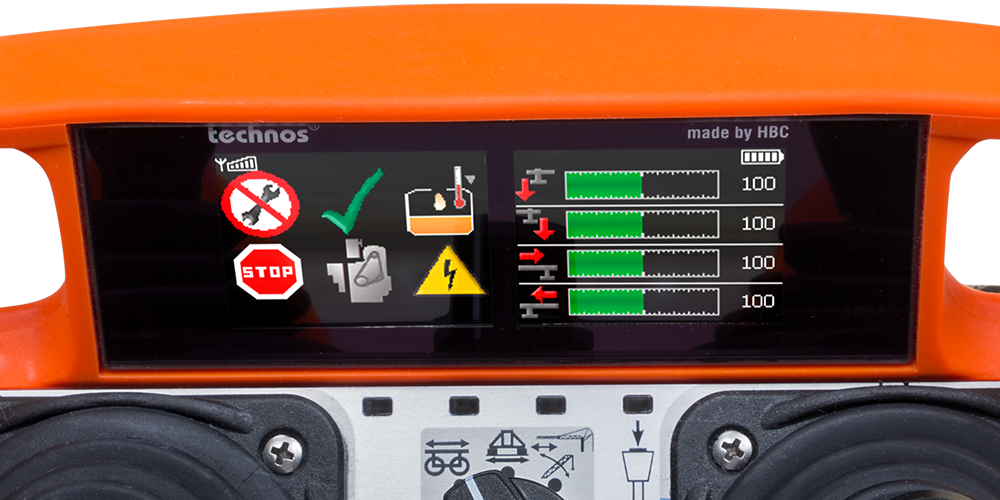

Data, information and warnings via two configurable 1.7" color TFTs
Information and warnings via LED
Information and warnings via transmitter vibration
