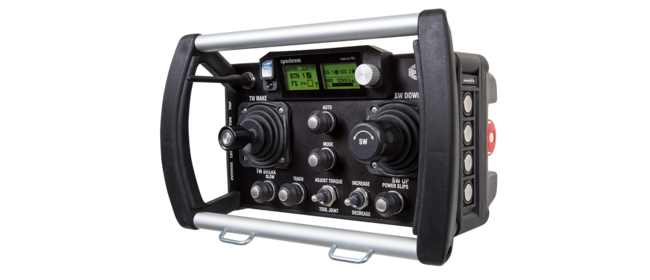

spectrum Ex Category 3

The versatile radio controls for applications in Ex zones 2 and 22.

spectrum Ex Category 3 The versatile radio controls for applications in Ex zones 2 and 22.
spectrum Ex Category 3 The versatile radio controls for applications in Ex zones 2 and 22.
spectrum Ex Category 3 The versatile radio controls for applications in Ex zones 2 and 22.
spectrum Ex Category 3 The versatile radio controls for applications in Ex zones 2 and 22.

Product description

With the spectrum transmitters for ATEX category 3, HBC-radiomatic presents versatile and powerful radio controls for applications in Ex zones 2 and 22. Three different housing sizes and a large selection of operating elements and functions allow for a perfect adaptation of the radio control to the demands of the application.

  • Operation
  • Safety
  • Frequency management
  • Dimensions & specifications
  • Service concept
  • HBC features (optional)
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC button sequence or merlin® TUC

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Zulassungen: | HBC-radiomatic GmbH

Zulassungen:

We offer the following approvals:

Manual frequency switch | HBC-radiomatic GmbH

Manual frequency switch

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic (with NEC / CEC approval only)

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-20 °C … +60 °C
(-4 °F … +140 °F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 2.5 kg / 5.5 lbs.

Dimensions: | HBC-radiomatic GmbH

Dimensions:

11.93" x 7.09" x 7.36"
(spectrum 2 / B)
14.53" x 7.09" x 7.09"
(spectrum 3)

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Tandem operation | HBC-radiomatic GmbH

Tandem operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Cable control | HBC-radiomatic GmbH

Cable control

The valuable alternative for specific working conditions.

Catch-release | HBC-radiomatic GmbH

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Bank switch for additional operating levels | HBC-radiomatic GmbH

Bank switch for additional operating levels

= additional control functions

radiomatic® shock-off / roll-detect / zero-g / inclination switch | HBC-radiomatic GmbH

radiomatic® shock-off / roll-detect / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

merlin® TUC | HBC-radiomatic GmbH

merlin® TUC

Efficient protection from unauthorized use

Micro drive | HBC-radiomatic GmbH

Micro drive

The safe speed limit.

Orthogonal drive | HBC-radiomatic GmbH

Orthogonal drive

Always on the right track.

Information and warnings via LED | HBC-radiomatic GmbH

Information and warnings via LED

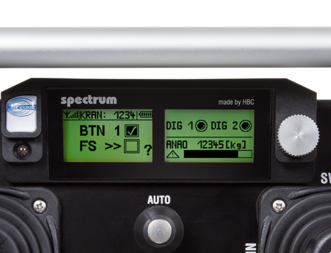

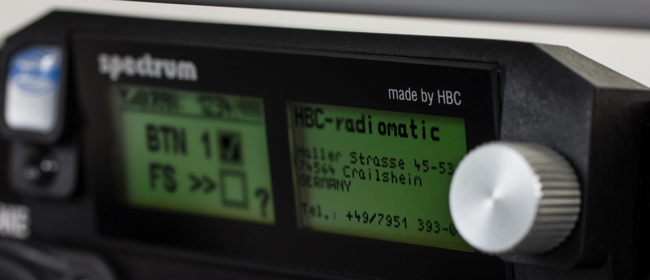

Integrated LCD for feedback and system data | HBC-radiomatic GmbH

Integrated LCD for feedback and system data

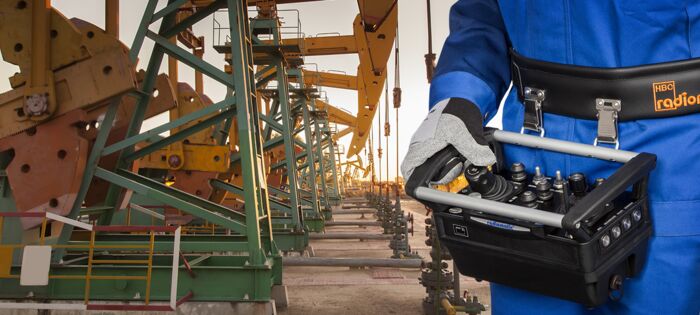

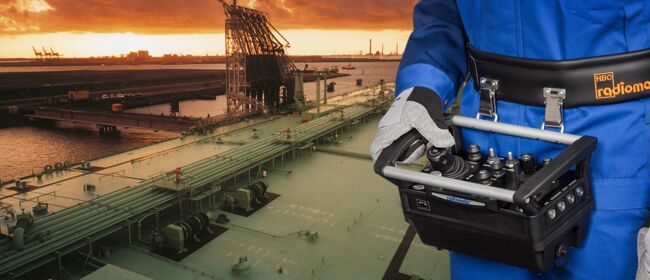

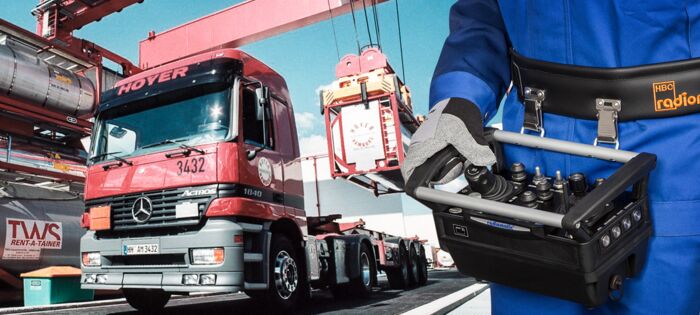

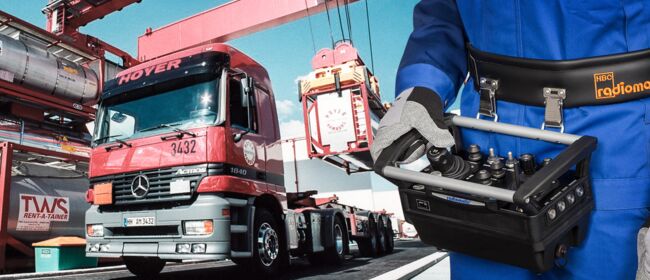

Typical applications

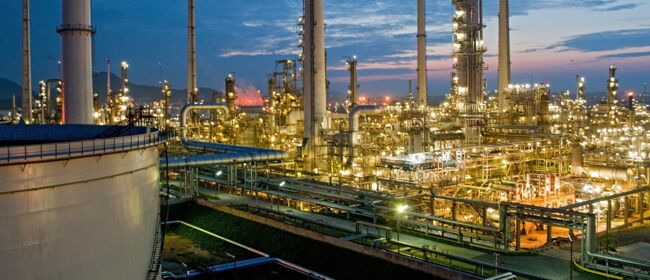

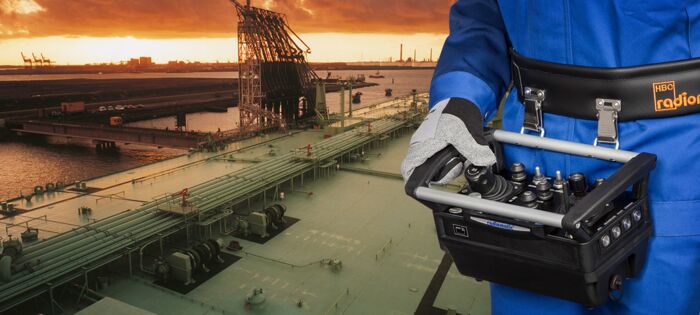

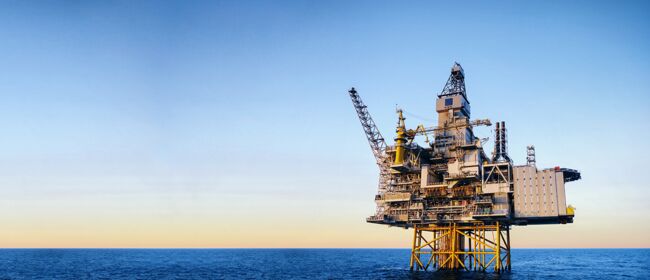

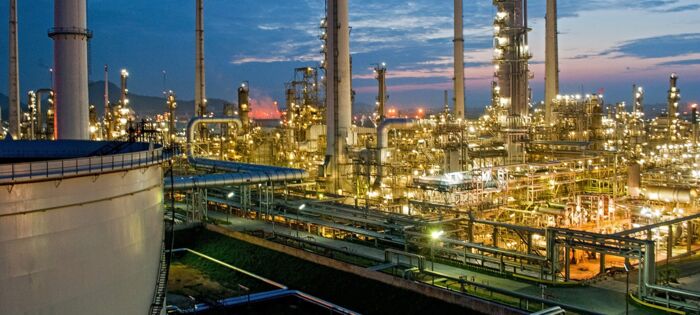

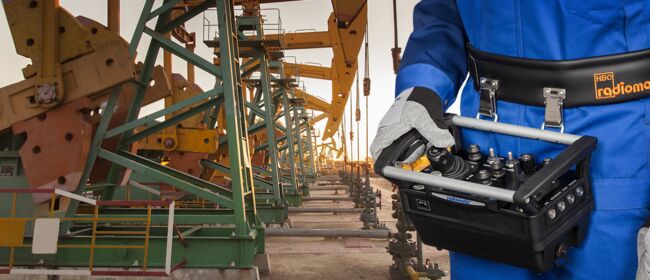

Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas
Hazardous areas

Versions

spectrum 2 Ex3

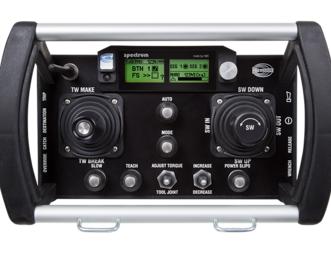

spectrum B Ex3

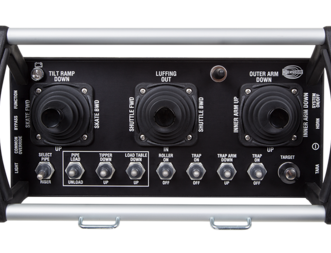

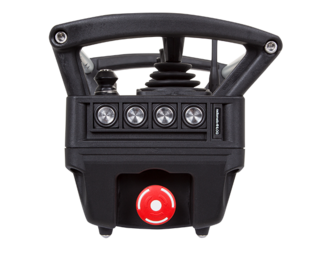

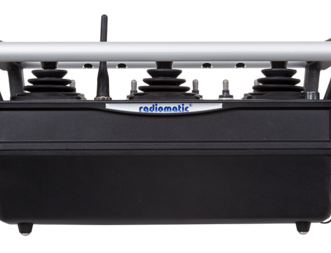

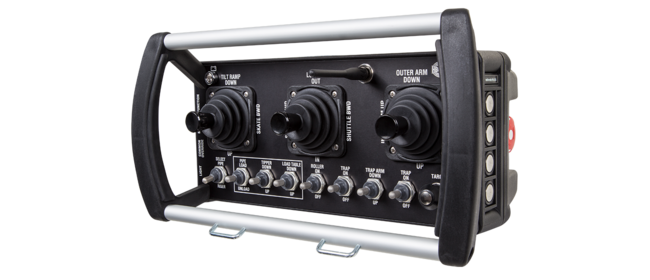

spectrum 3 Ex3

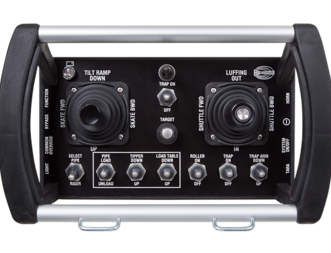

spectrum 2 Ex3

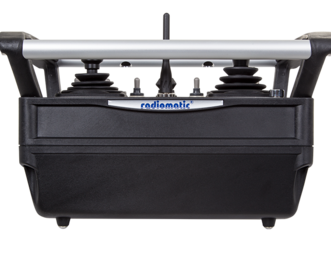

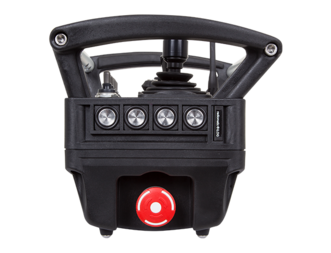

spectrum 2 Ex3

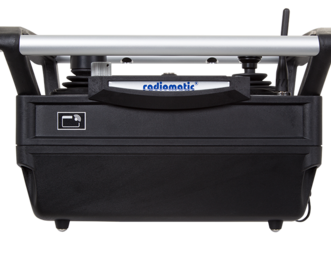

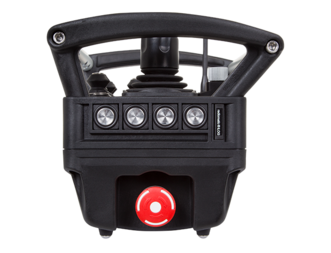

spectrum B Ex3
spectrum B Ex3
spectrum 3 Ex3
spectrum 3 Ex3

Views

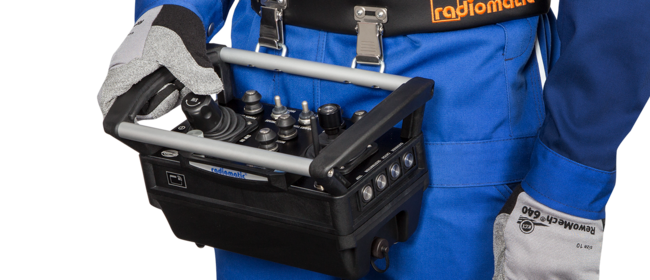

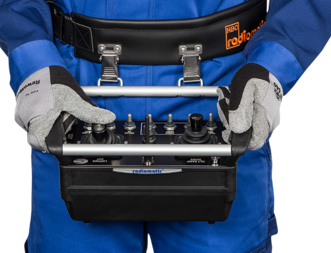

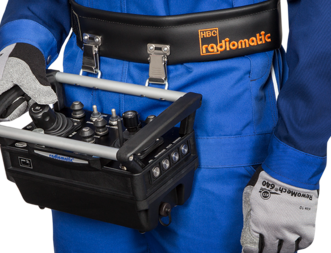

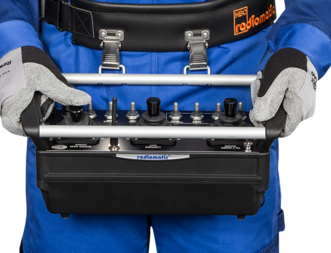

Carrying by leather hip belt
Carrying by leather hip belt

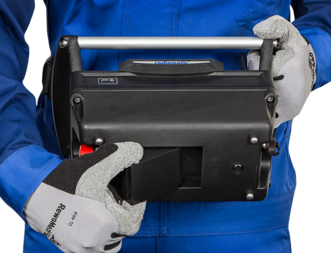

Battery exchange
Battery exchange
Carrying by leather hip belt
Carrying by leather hip belt
Carrying by leather hip belt
Carrying by leather hip belt
