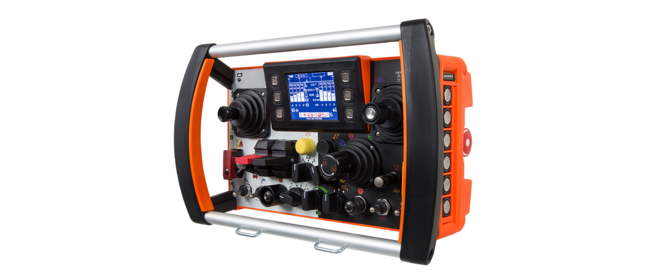

spectrum E

Maximum performance, unlimited possibilities.

spectrum E Maximum performance, unlimited possibilities.
spectrum E Maximum performance, unlimited possibilities.
spectrum E Maximum performance, unlimited possibilities.
spectrum E Maximum performance, unlimited possibilities.

Product description

The high-end radio control by HBC-radiomatic. Countless features and functions available in the convenient spectrum design. Individuality becomes the standard.

  • Operation
  • Safety
  • Frequency management
  • Dimensions & specifications
  • Service concept
  • HBC features (optional)
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator

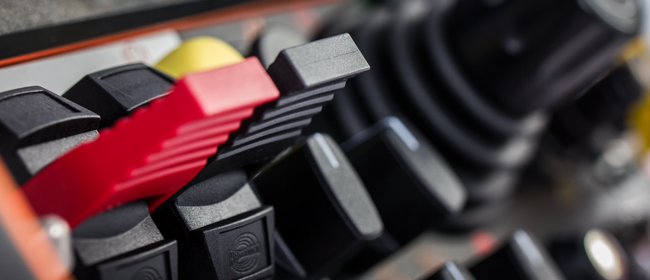

Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Manual frequency switch | HBC-radiomatic GmbH

Manual frequency switch

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic (with NEC / CEC approval only)

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

radiomatic® AFM | HBC-radiomatic GmbH

radiomatic® AFM

= fully automatic

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-20 °C … +70 °C
(-4 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 3.5 kg (7.7 lbs.)

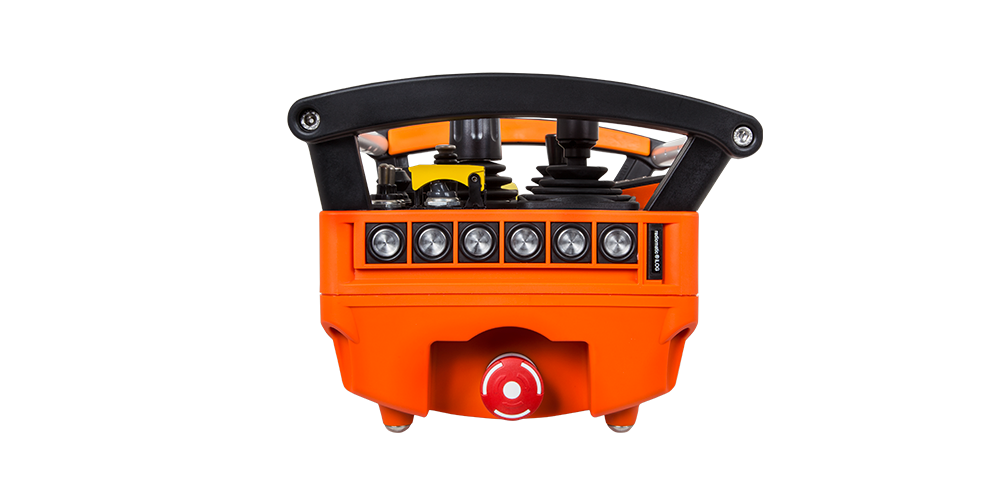

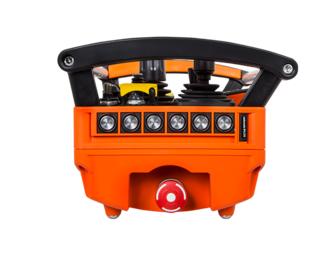

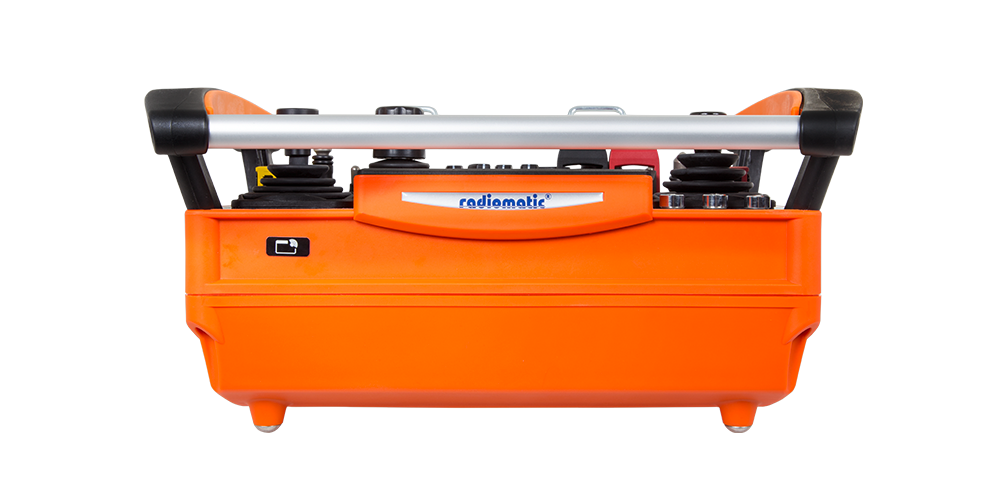

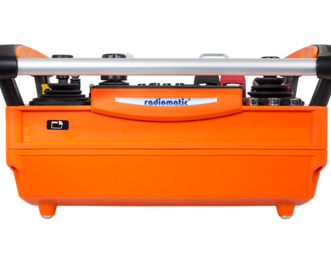

Dimensions: | HBC-radiomatic GmbH

Dimensions:

183 x 372 x 230 x mm
(7.17 x 14.65 x 9.06 in.)

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Tandem operation | HBC-radiomatic GmbH

Tandem operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Catch-release | HBC-radiomatic GmbH

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Cable control | HBC-radiomatic GmbH

Cable control

The valuable alternative for specific working conditions.

radiomatic® CPS | HBC-radiomatic GmbH

radiomatic® CPS

Change the battery without downtime.

Bank switch for additional operating levels | HBC-radiomatic GmbH

Bank switch for additional operating levels

= additional control functions

radiomatic® photon | HBC-radiomatic GmbH

radiomatic® photon

Safe working with camera assistance.

radiomatic® infrakey | HBC-radiomatic GmbH

radiomatic® infrakey

Activation only with direct visual contact (line of sight).

radiomatic® shock-off / roll-detect / zero-g / inclination switch | HBC-radiomatic GmbH

radiomatic® shock-off / roll-detect / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

Enabling switch | HBC-radiomatic GmbH

Enabling switch

Safe release of defined functions

merlin® TUC (Transmitter User Card) – user identification | HBC-radiomatic GmbH

merlin® TUC (Transmitter User Card) – user identification

The easy and safe arrangement of access rights.

Micro drive | HBC-radiomatic GmbH

Micro drive

The safe speed limit.

Orthogonal drive | HBC-radiomatic GmbH

Orthogonal drive

Always on the right track.

Front panel lighting | HBC-radiomatic GmbH

Front panel lighting

For a clear view in low light conditions.

Data, information and warnings via configurable 3.5" color TFT | HBC-radiomatic GmbH

Data, information and warnings via configurable 3.5" color TFT

Information and warnings via LED | HBC-radiomatic GmbH

Information and warnings via LED

Information and warnings via transmitter vibration | HBC-radiomatic GmbH

Information and warnings via transmitter vibration

Typical applications

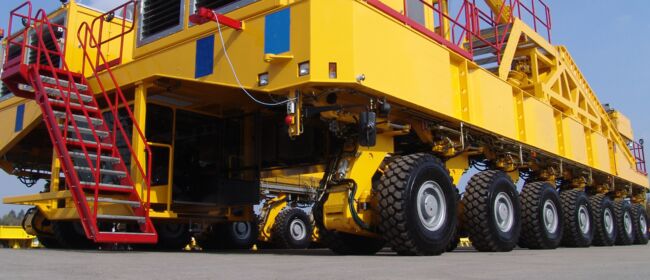

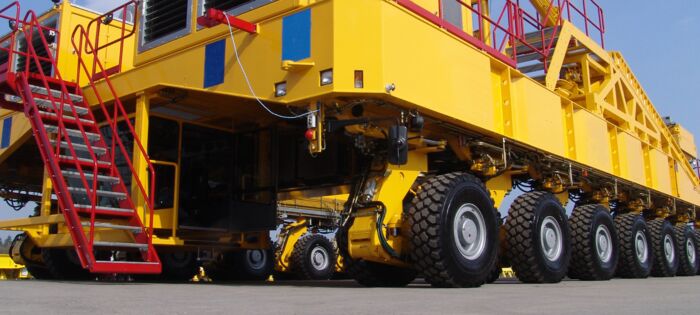

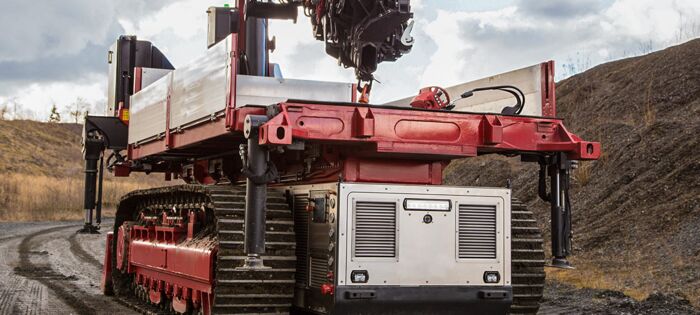

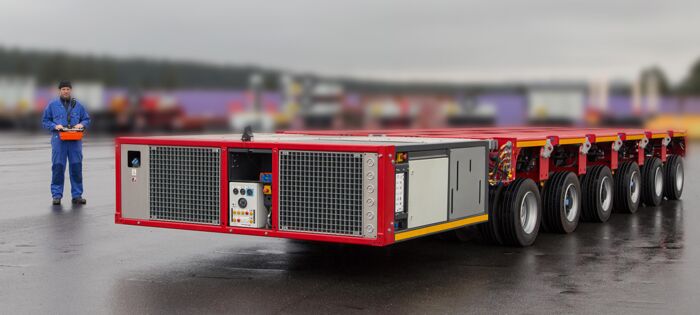

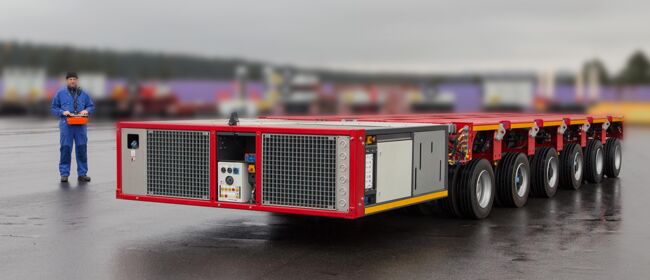

Vehicle technology
Vehicle technology

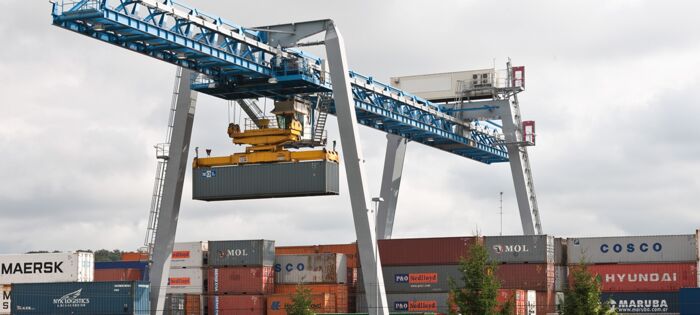

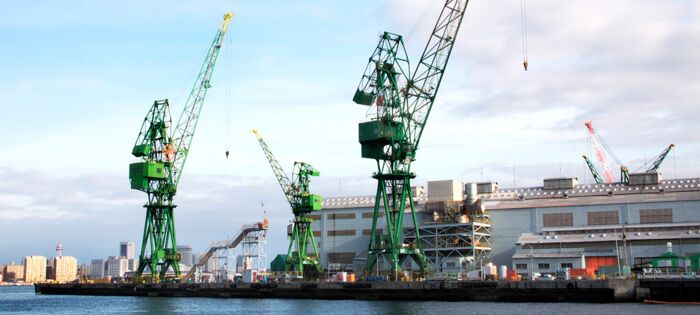

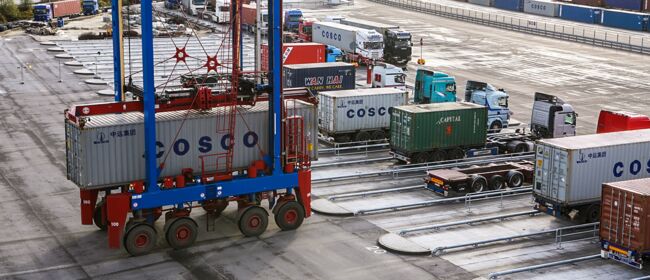

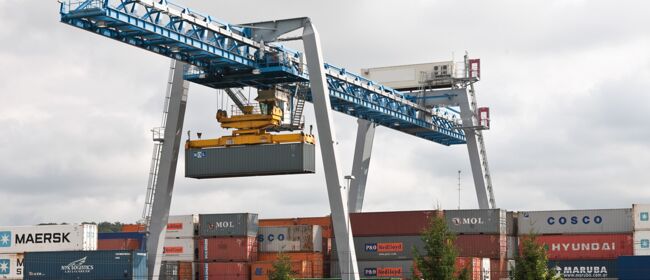

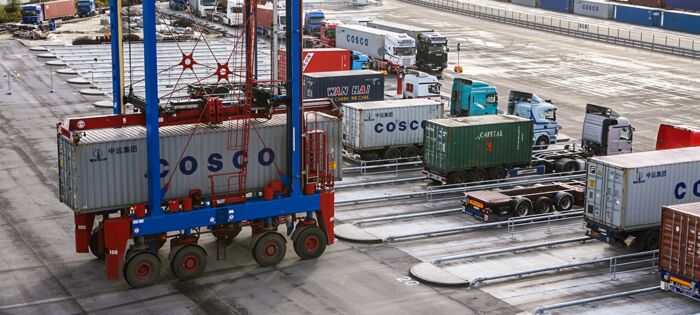

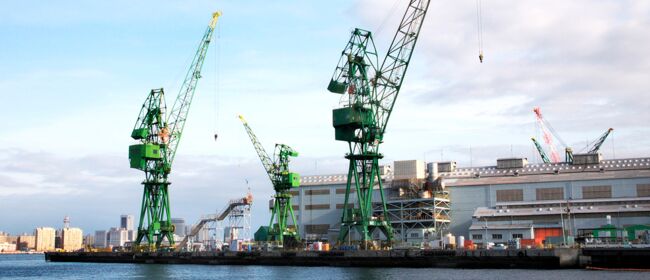

Harbor and ship technology
Harbor and ship technology
Vehicle technology
Vehicle technology

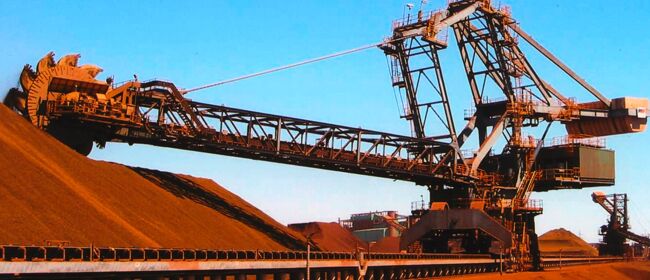

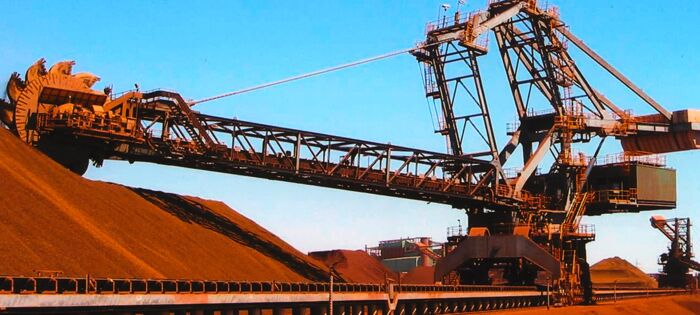

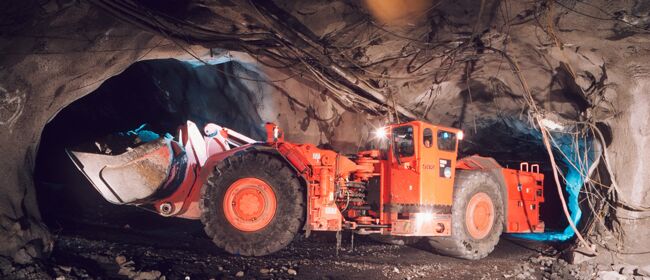

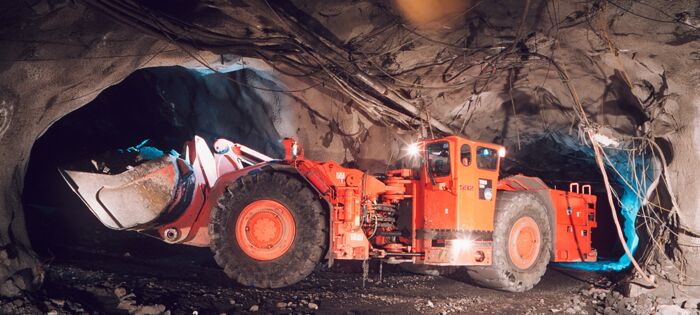

Mining & drilling technology
Mining & drilling technology
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Vehicle technology
Vehicle technology
Vehicle technology
Vehicle technology
Mining & drilling technology
Mining & drilling technology
Vehicle technology
Vehicle technology
Harbor and ship technology
Harbor and ship technology
Vehicle technology
Vehicle technology
Mining & drilling technology
Mining & drilling technology
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Vehicle technology
Vehicle technology
Vehicle technology
Vehicle technology
Mining & drilling technology
Mining & drilling technology

Versions

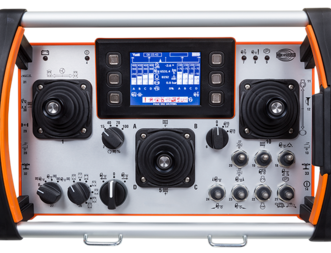

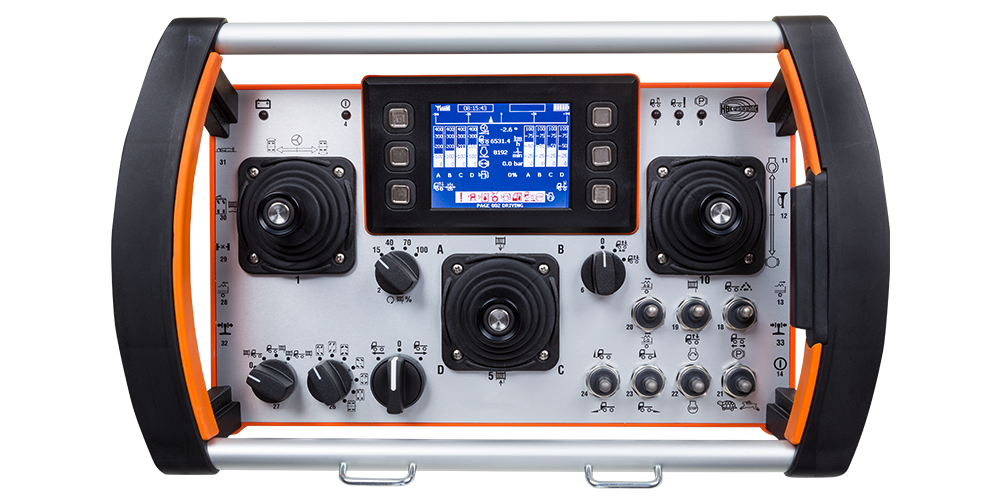

Version with joysticks
Version with lienar levers

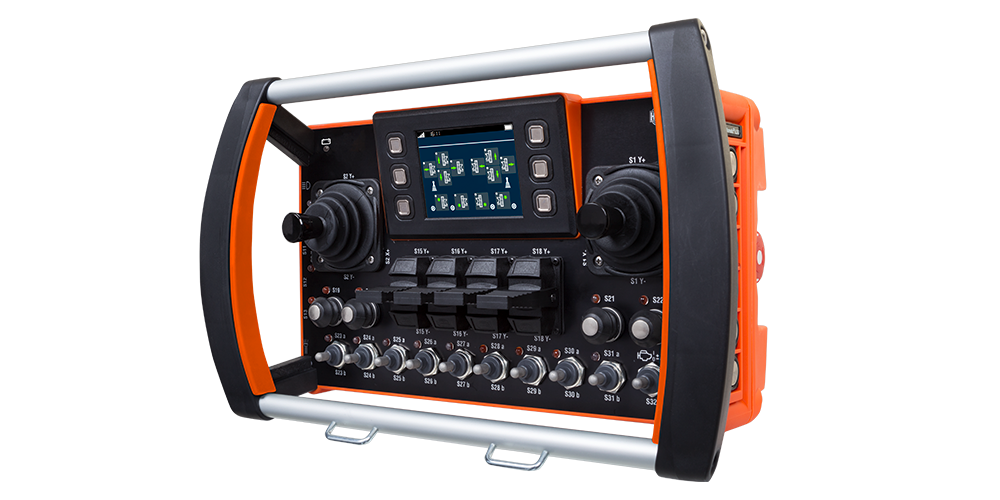

Customized version
Customized version
Customized version
Customized version
Customized version
Version with joysticks
Version with joysticks
Version with lienar levers
Version with lienar levers
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version
Customized version

Views

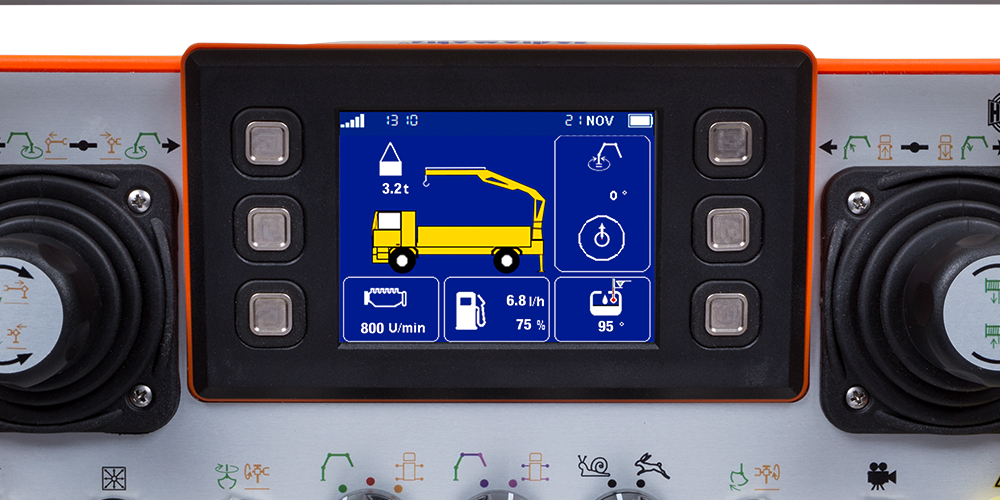

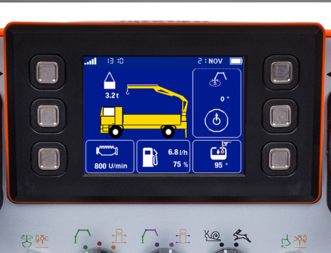

3.5˝ TFT color display
3.5˝ TFT color display

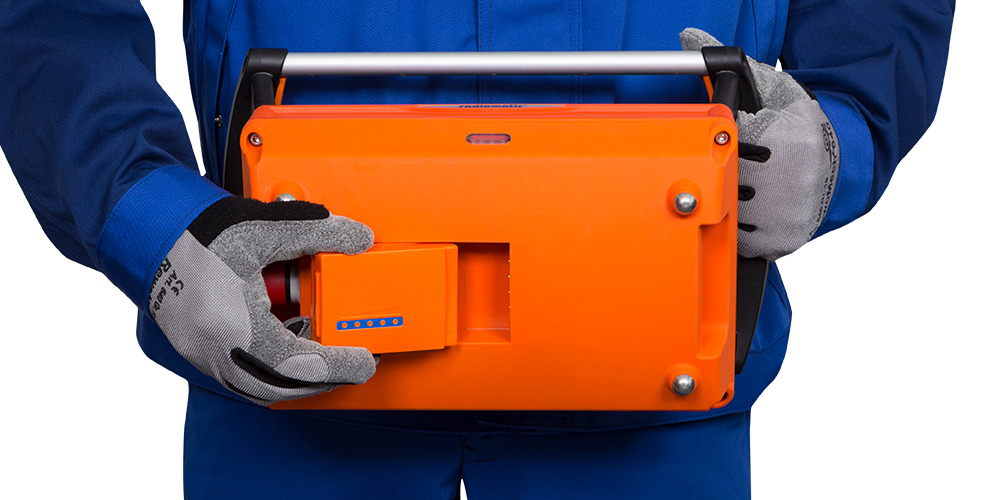

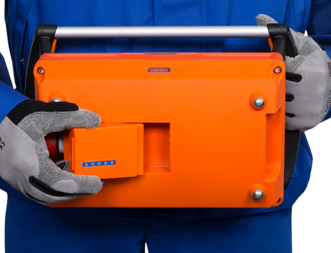

Battery exchange
Battery exchange

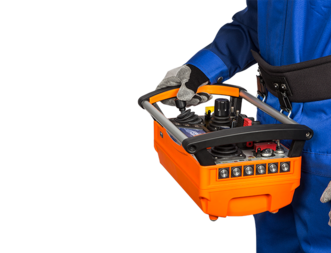

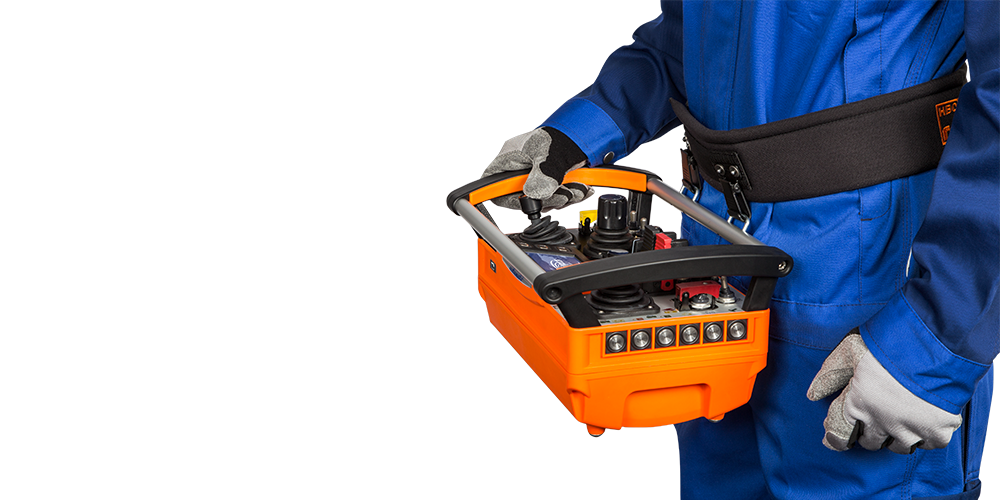

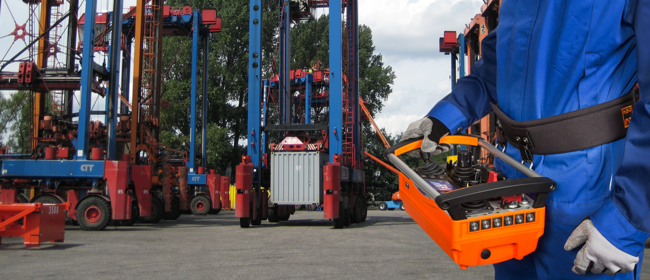

Carrying by hip belt
Carrying by hip belt
