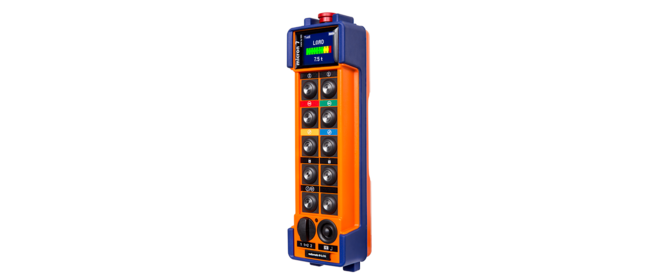

micron 7

The high-performing push button transmitter with built-in color display.

micron 7 The high-performing push button transmitter with built-in color display.
micron 7 The high-performing push button transmitter with built-in color display.
micron 7 The high-performing push button transmitter with built-in color display.
micron 7 The high-performing push button transmitter with built-in color display.

Product description

The micron with exceptionally large function range. Configurable 1.77˝ color TFT for the convenient display of data in an individual format.

  • Operation
  • Safety
  • Frequency management
  • Dimensions & specifications
  • Service concept
  • HBC features (optional)
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Feedback to the operator
Operating elements & control functions | HBC-radiomatic GmbH

Operating elements & control functions

Battery technology | HBC-radiomatic GmbH

Battery technology

Indication | HBC-radiomatic GmbH

Indication

Protection from unauthorized use | HBC-radiomatic GmbH

Protection from unauthorized use

Activation via HBC start-up sequence, PIN or merlin® TUC

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off | HBC-radiomatic GmbH

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic (with NEC / CEC approval only)

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-20 °C … +70 °C
(-4 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

approx. 550 g (1.2 lb.)

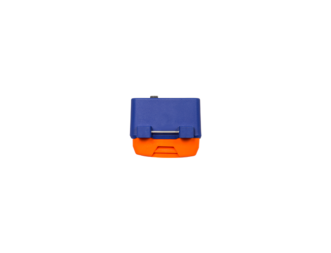

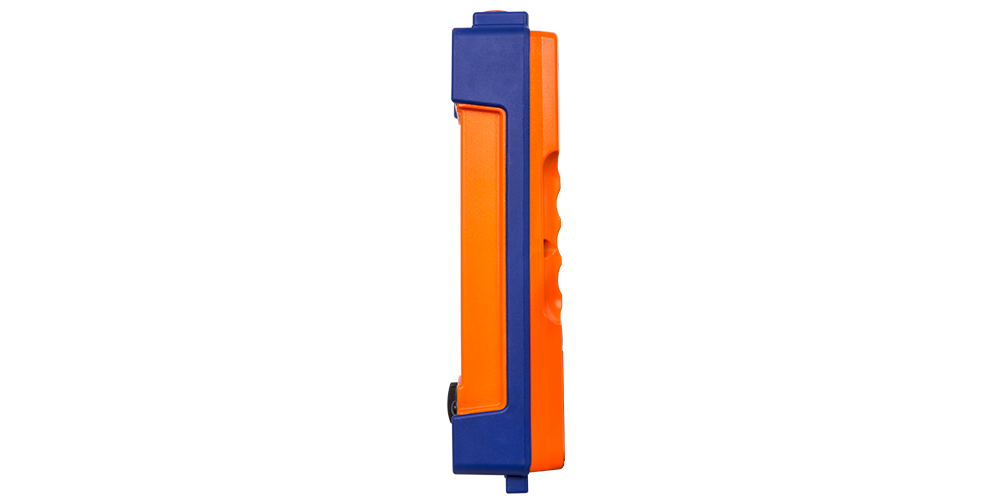

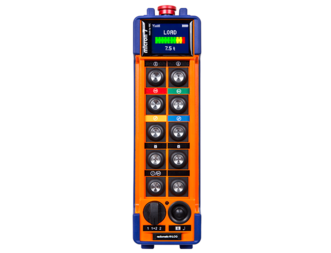

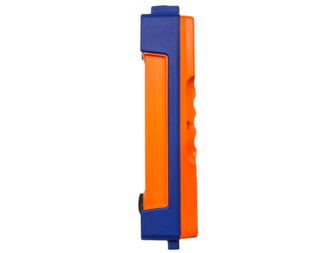

Dimensions: | HBC-radiomatic GmbH

Dimensions:

240 x 68 x 58 mm
(9.5 x 2.7 x 2.3 in.)

radiomatic® iLOG | HBC-radiomatic GmbH

radiomatic® iLOG

Service without downtime

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Tandem operation | HBC-radiomatic GmbH

Tandem operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Catch-release | HBC-radiomatic GmbH

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Bank switch for additional operating levels | HBC-radiomatic GmbH

Bank switch for additional operating levels

= additional control functions

radiomatic® infrakey | HBC-radiomatic GmbH

radiomatic® infrakey

Activation only with direct visual contact (line of sight).

radiomatic® shock-off / roll-detect / zero-g / inclination switch | HBC-radiomatic GmbH

radiomatic® shock-off / roll-detect / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

merlin® TUC (Transmitter User Card) – user identification | HBC-radiomatic GmbH

merlin® TUC (Transmitter User Card) – user identification

The easy and safe arrangement of access rights.

Data, information and warnings via configurable 1.7" color TFT | HBC-radiomatic GmbH

Data, information and warnings via configurable 1.7" color TFT

Information and warnings via LED | HBC-radiomatic GmbH

Information and warnings via LED

Information and warnings via transmitter vibration | HBC-radiomatic GmbH

Information and warnings via transmitter vibration

Typical applications

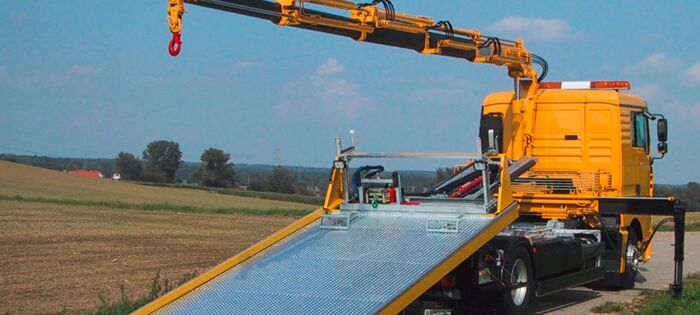

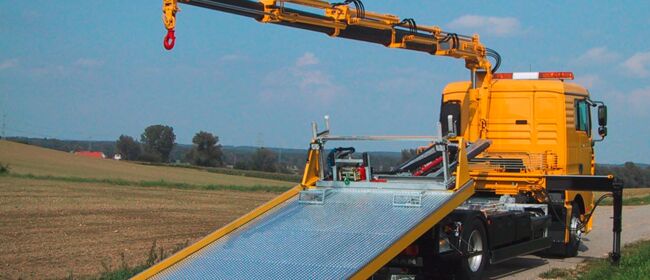

Vehicle technology
Vehicle technology

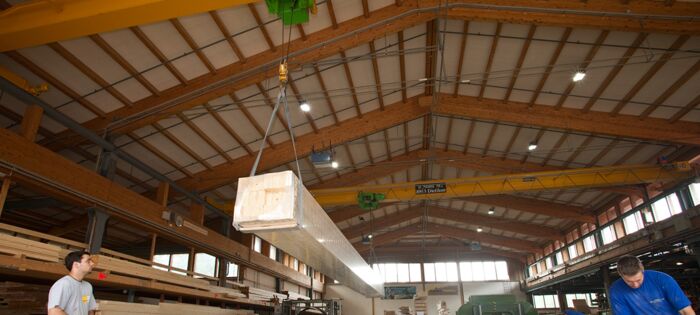

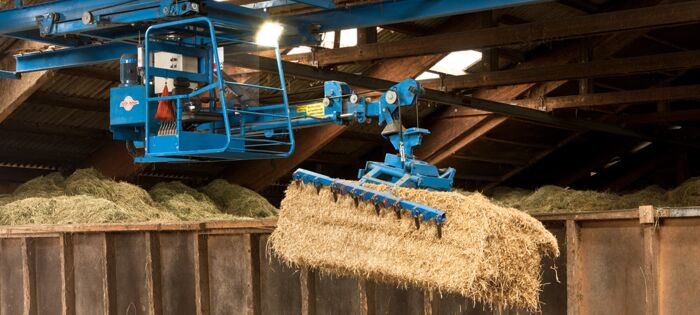

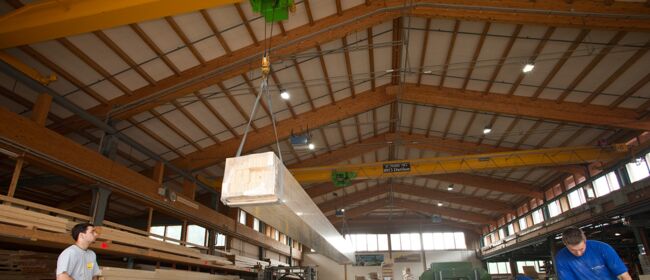

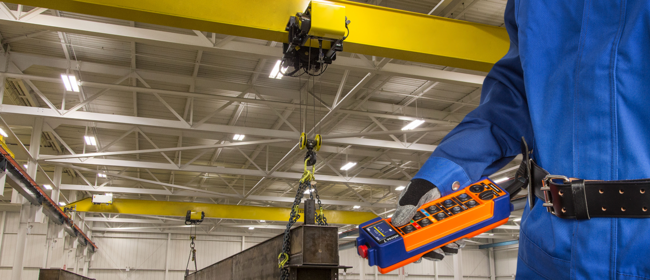

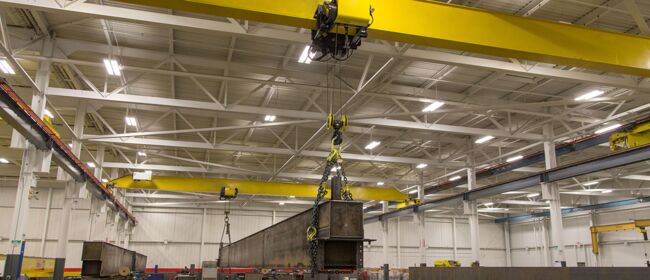

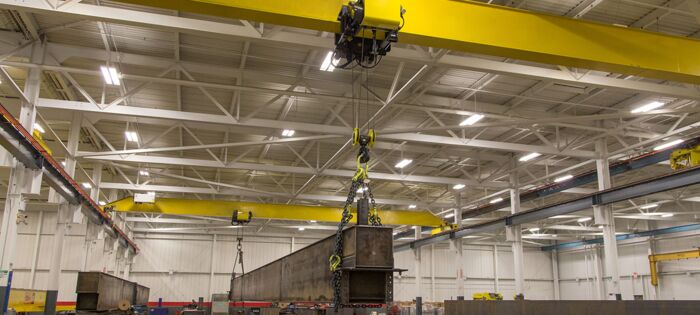

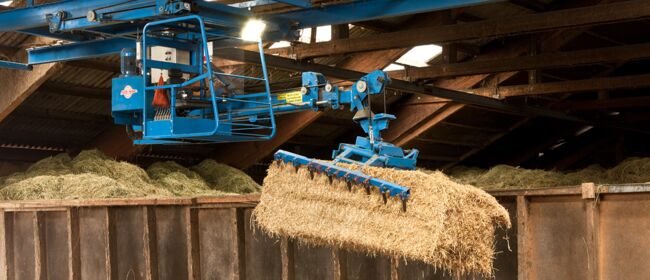

Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Vehicle technology
Vehicle technology
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment
Industrial cranes & lift equipment

Views

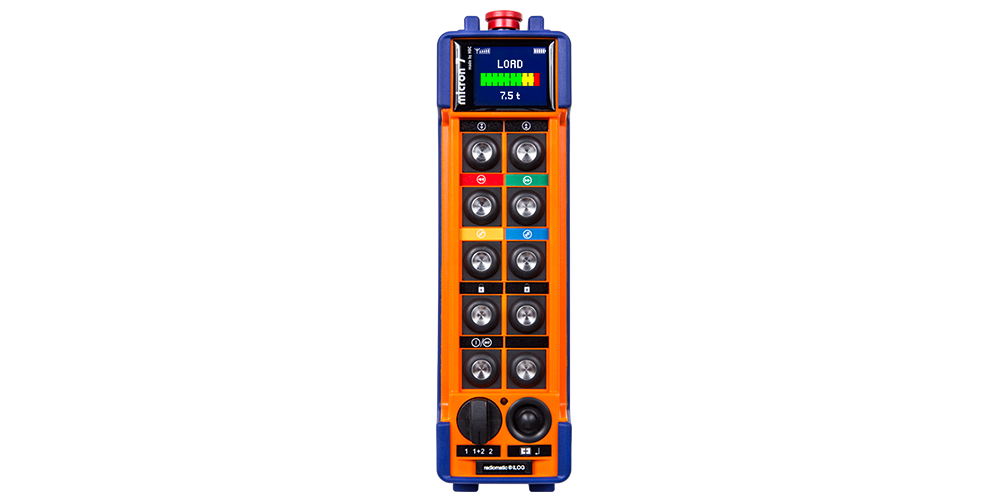

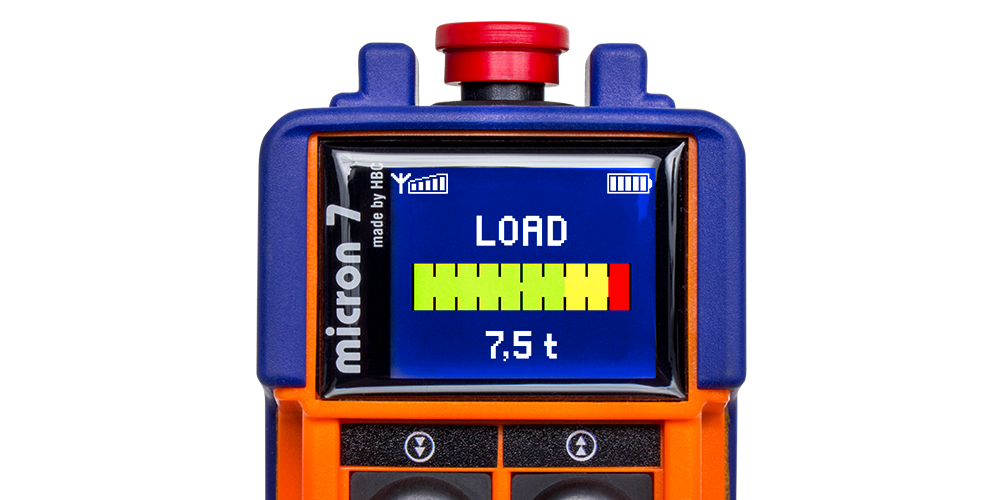

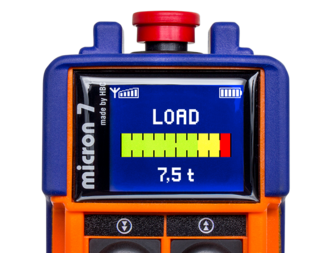

1.7˝ TFT color display
1.7˝ TFT color display

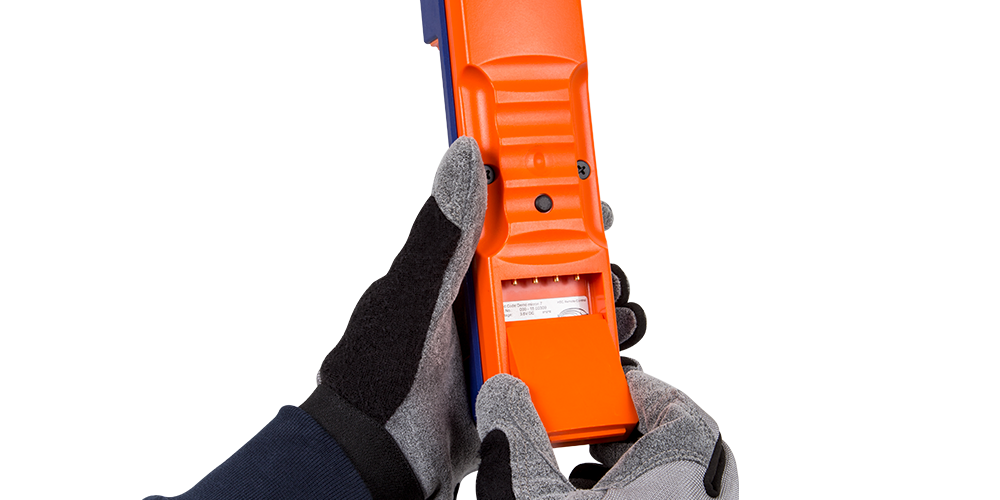

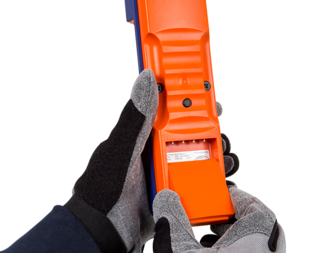

Battery exchange
Battery exchange

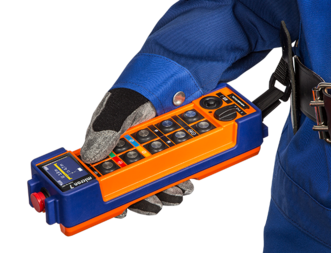

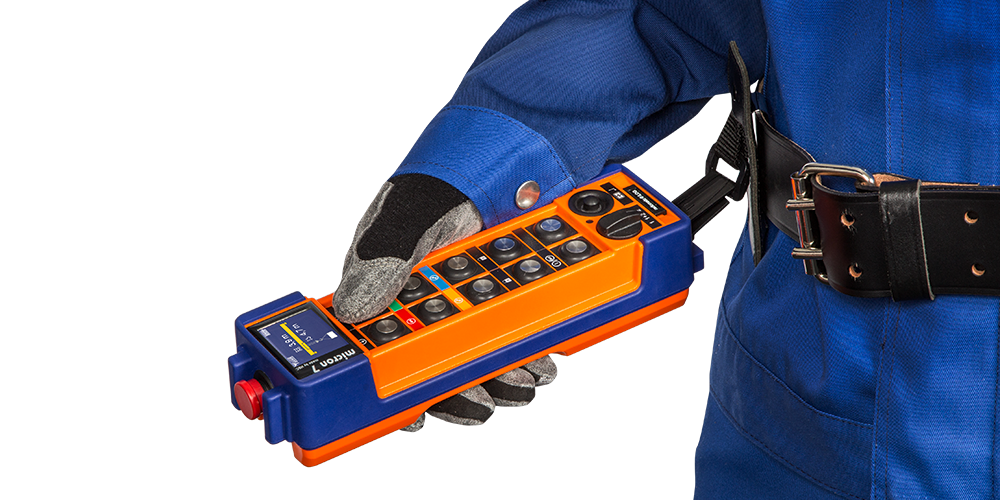

Carrying by belt clip
Carrying by belt clip
