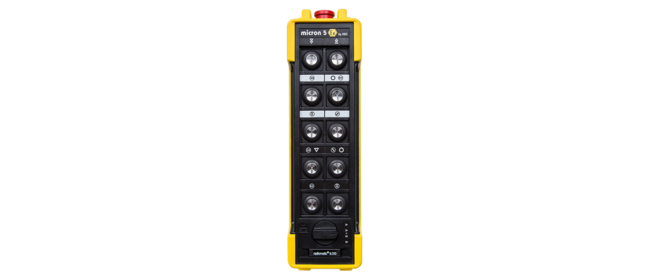

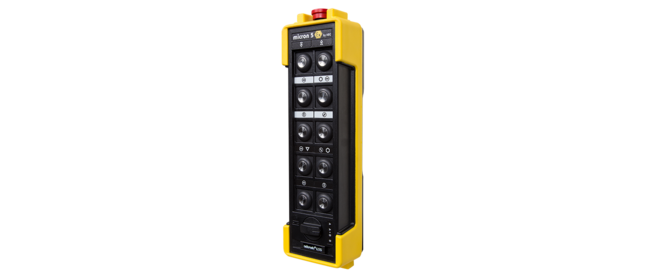

Product description
The proven micron design, ATEX and IECEx certified for hazardous locations. Safety and operating comfort for industrial cranes and machines.
- Operation
- Safety
- Frequency management
- Dimensions & specifications
- Service concept
- HBC features (optional)
- Extended control concepts
- Performance & availability
- Enhanced safety functions
- Feedback to the operator

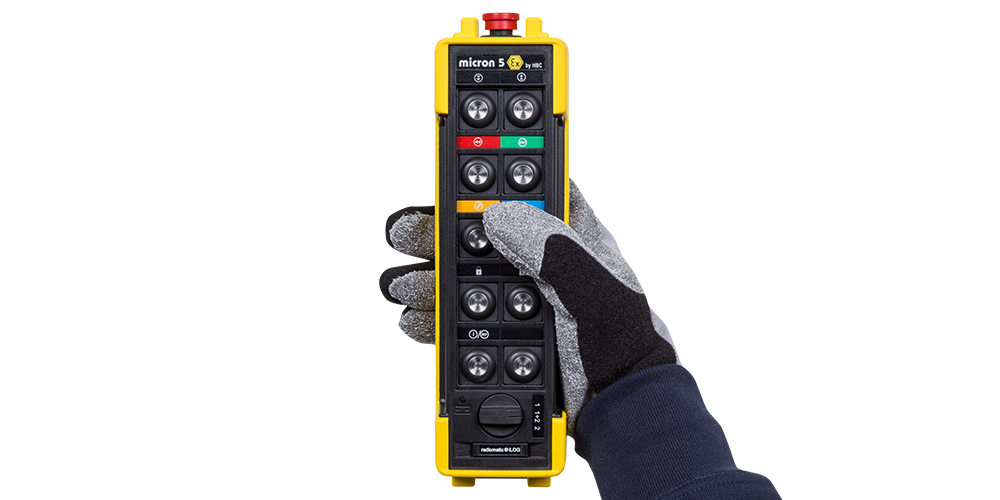

Operating elements & control functions
Battery technology
Indication
Protection from unauthorized use
Activation via HBC start-up sequence or merlin® TUC.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Approvals
We offer the following Ex approvals:
Manual frequency switch
radiomatic® AFS
= partially automatic
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-20 °C … +60 °C
(-4 °F … +140 °F)
Weight:
approx. 550 g (1.2 lb.)

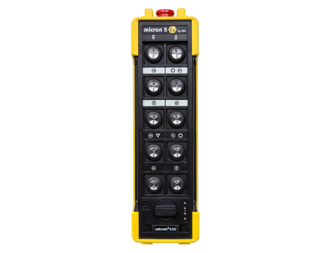

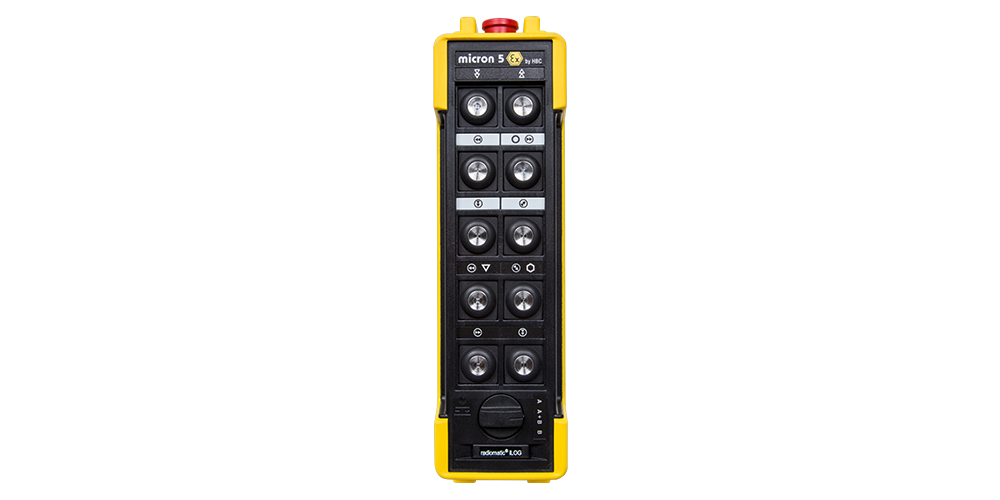

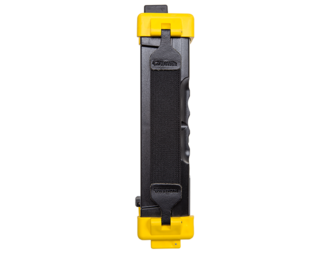

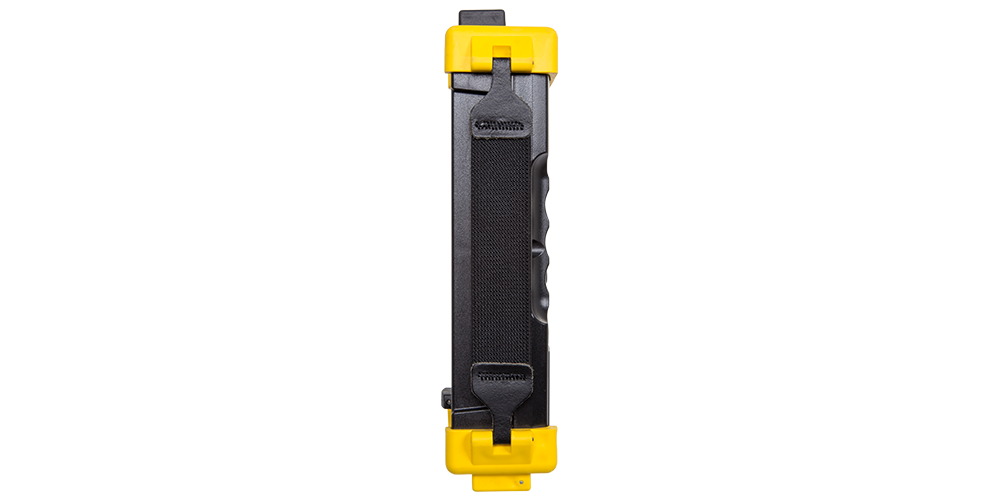

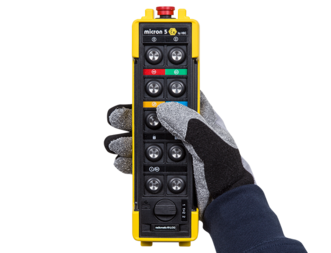

Dimensions:
243 x 83 x 59 mm
(9.6 x 3.3 x 2.3 in.)
radiomatic® iLOG
Service without downtime
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator
Tandem operation
Safe transport of long and bulky goods.
Pre-selection of trolley / hoist
Efficiency and safety for cranes with 2 trolleys.
Catch-release
Share cranes and machines, optimize workload, and increase safety.
Bank switch for additional operating levels
= additional control functions
radiomatic® shock-off / roll-detect / zero-g / inclination switch
Intelligent safety features for specific emergency situations.
merlin® TUC (Transmitter User Card) – user identification
The easy and safe arrangement of access rights.
Information and warnings via LED

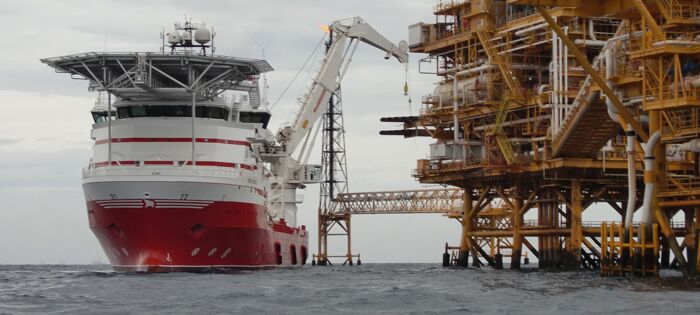

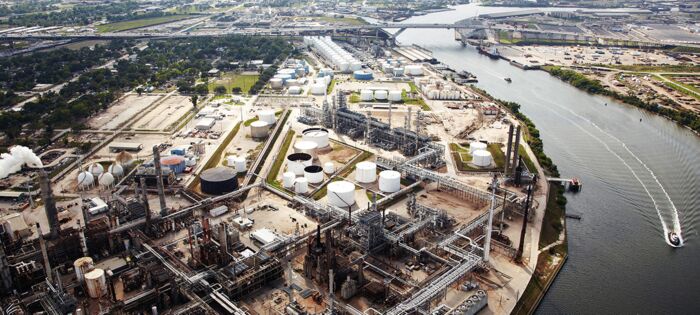

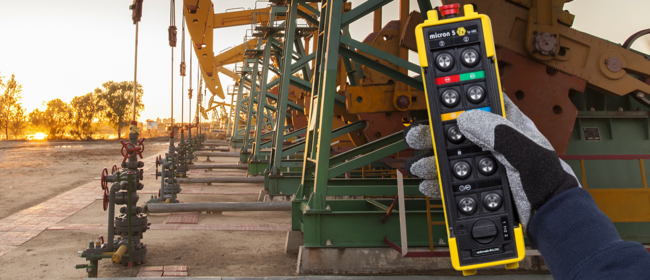

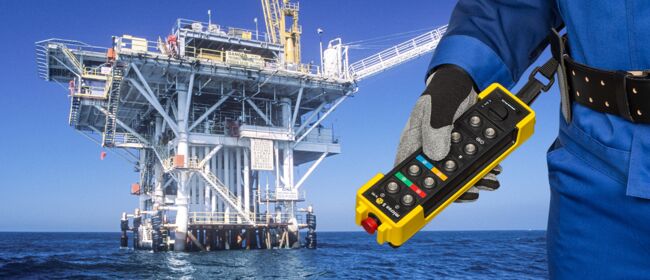

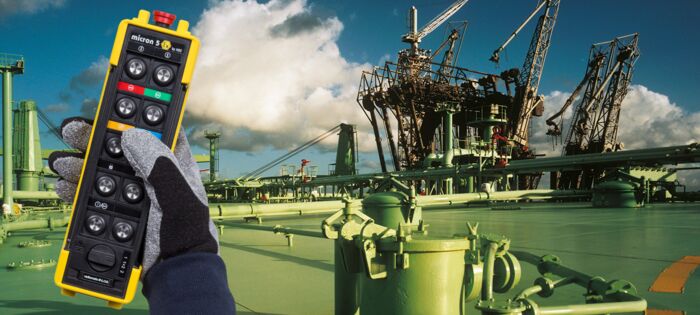

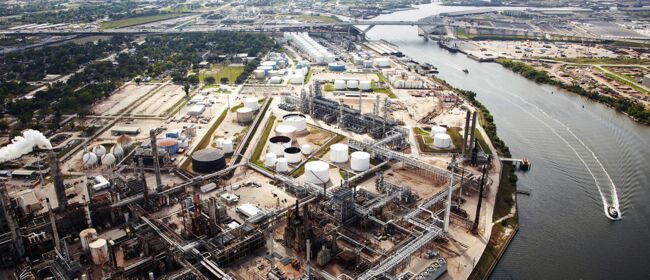

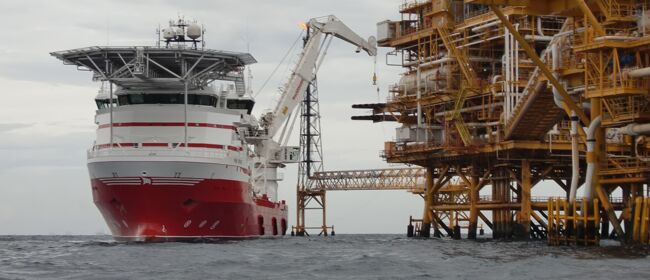

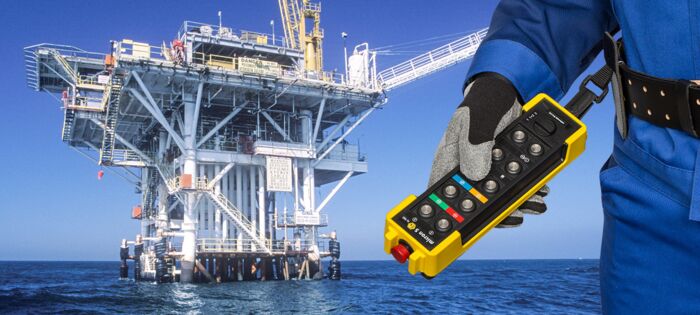

Typical applications
Views
