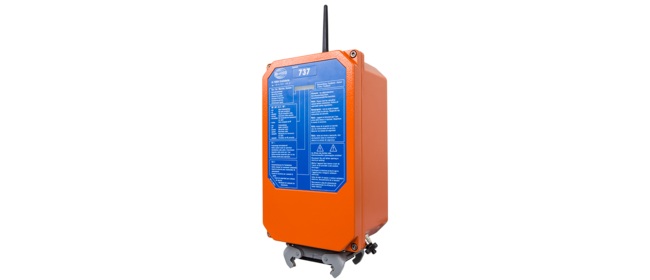

FSE 737 radiobus®

Maximum performance for large mobile applications.

FSE 737 radiobus<sup>®</sup> Maximum performance for large mobile applications.
FSE 737 radiobus<sup>®</sup> Maximum performance for large mobile applications.

Product description

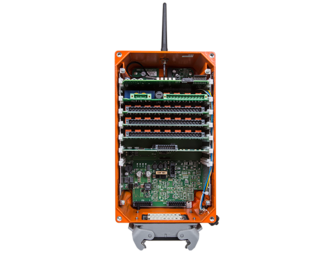

First-class equipment for the control of mobile cranes and machinery. Perfect individual configuration with modular radiobus® cards. Many different interfaces and HBC features available.

  • Basic equipment
  • Safety
  • Frequency management
  • Dimensions & specifications
  • HBC features (optional)
  • Extended control concepts
  • Performance & availability
  • Enhanced safety functions
  • Reporting
  • Feedback to the operator

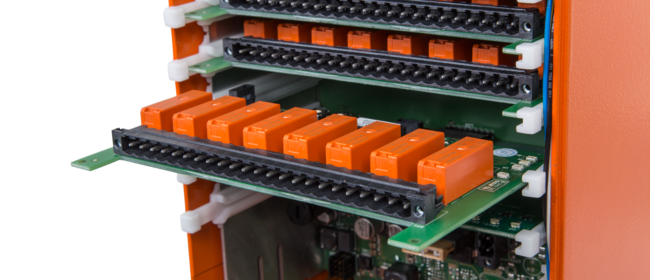

Output elements | HBC-radiomatic GmbH

Output elements

Control functions | HBC-radiomatic GmbH

Control functions

Indication | HBC-radiomatic GmbH

Indication

Antenna | HBC-radiomatic GmbH

Antenna

E-STOP | HBC-radiomatic GmbH

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Functional Safety | HBC-radiomatic GmbH

Functional Safety

As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)

Manual frequency switch | HBC-radiomatic GmbH

Manual frequency switch

radiomatic® AFS | HBC-radiomatic GmbH

radiomatic® AFS

= partially automatic

radiomatic® AFM | HBC-radiomatic GmbH

radiomatic® AFM

= fully automatic

DECT | HBC-radiomatic GmbH

DECT

= fully automatic

Adaptive Frequency Hopping | HBC-radiomatic GmbH

Adaptive Frequency Hopping

= fully automatic (with NEC / CEC approval only)

Housing material / protection class: | HBC-radiomatic GmbH

Housing material / protection class:

Aluminum housing, protection class IP 65

Operating temperature range: | HBC-radiomatic GmbH

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight: | HBC-radiomatic GmbH

Weight:

3.5 kg (7.7 lbs.)

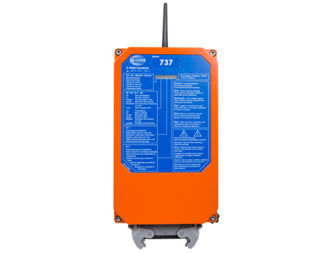

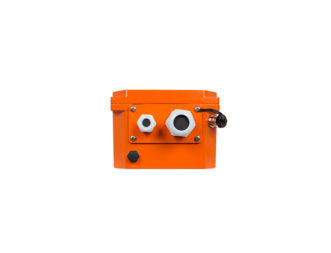

Dimensions: | HBC-radiomatic GmbH

Dimensions:

270 x 160 x 115 mm
(10.6 x 6.3 x 4.5 in.)

Power supply: | HBC-radiomatic GmbH

Power supply:

10 – 30 V DC; 24 V DC

Connection: | HBC-radiomatic GmbH

Connection:

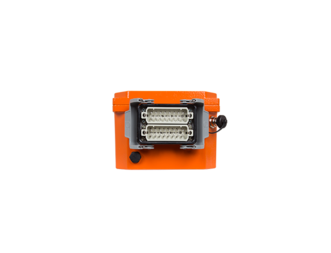

HAN®-32A or HAN®-50D

Installation: | HBC-radiomatic GmbH

Installation:

Shock absorbers

Extended control concepts | HBC-radiomatic GmbH

Extended control concepts

Performance & availability | HBC-radiomatic GmbH

Performance & availability

Enhanced safety functions | HBC-radiomatic GmbH

Enhanced safety functions

Reporting | HBC-radiomatic GmbH

Reporting

Feedback to the operator | HBC-radiomatic GmbH

Feedback to the operator

Tandem operation | HBC-radiomatic GmbH

Tandem operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist | HBC-radiomatic GmbH

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Catch-release | HBC-radiomatic GmbH

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Cable control | HBC-radiomatic GmbH

Cable control

The valuable alternative for specific working conditions.

focus T | HBC-radiomatic GmbH

focus T

Optimal communication in specific working conditions.

radiomatic® infrakey | HBC-radiomatic GmbH

radiomatic® infrakey

Activation only with direct visual contact (line of sight).

radiomatic® report – HBC data logger | HBC-radiomatic GmbH

radiomatic® report – HBC data logger

Useful operational data at hand.

Feedback to the operator available | HBC-radiomatic GmbH

Feedback to the operator available

Version depending on the transmitter.
